Specifications

• Mfr Part Number: F2-212
• Feature:
  • More powerful performance
  • New Operating System
  • Home Data Center
  • Home Multimedia Center

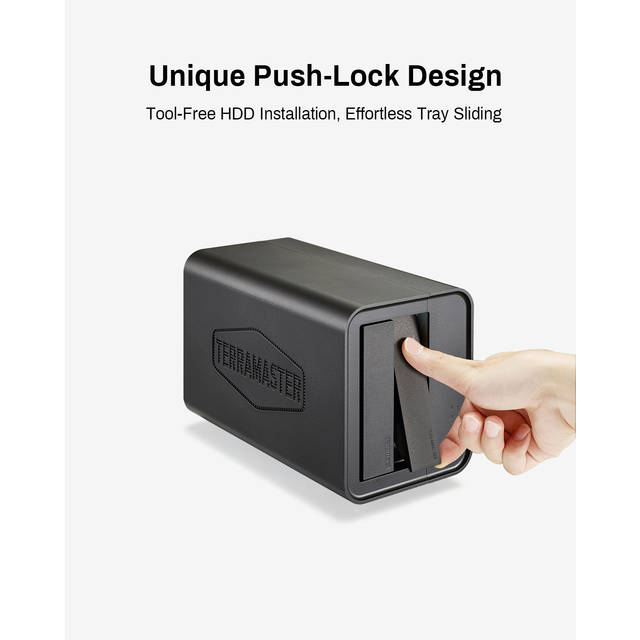

  • Easy to swap hard drives
  • Flexible Storage Space Management
  • Across-Platform File Services
  • Advanced File Systems
  • No Fear of Ransomware Attacks
  • Rich Backup Solutions
  • Building a Convenient and Safer Private Cloud
  • More Flexible Mobile Access
  • Improved Desktop Assistant
  • Simple & Fast System Installation
  • Rick Multimedia Applications
  • Al Album Management
  • Docker Brings Greater Possibilities
  • Worry-free After-sales Service
• Processor:
  • Processor Model: Realtek 1619B
  • Processor Architecture: ARM V8.2 Cortex-A55 64-bit
  • Processor Frequency: Quad Core 1.7 GHz
  • Hardware Encryption Engine
• Memory:
  • System Memory: 1GB DDR4 non-ECC
  • Pre-installed Memory module: 1 GB DDR4 non-ECC
  • Maximum Supported Memory: 1GB DDR4 non-ECC
  • Note: TerraMaster reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
• Storage:
  • Disk Slot Number: 2
  • Compatible Drive types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD

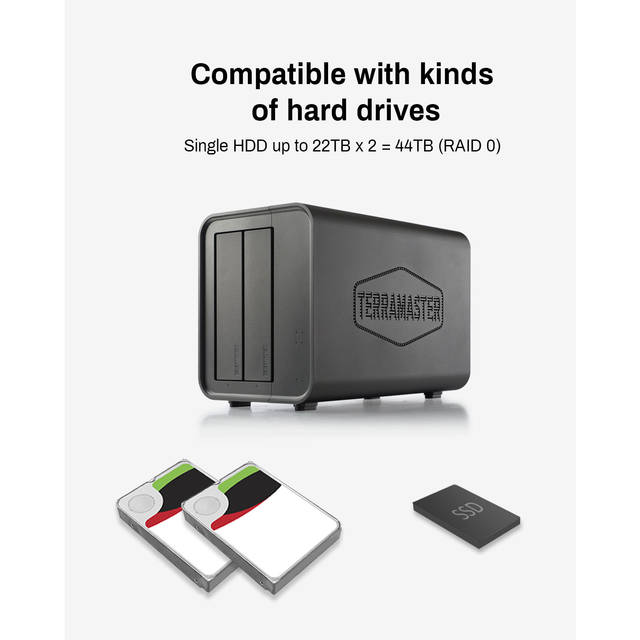

  • Maximum Internal Raw Storage Capacity: 44 TB (22 TB x2) (Capacity may vary by RAID types)
  • Drive Hot Swap
  • Note: Hard drive vendors will release their latest models of hard drives, and Maximum internal raw storage capacity may be adjusted accordingly; The maximum single volume size is not directly related to the maximum raw capacity.
• File System:
  • Internal Drive: Btrfs, EXT4
  • External Drive: EXT3, EXT4, NTFS, FAT32, HFS+
• Working Temperature:
  • Working Temperature: 0C ~ 40C (32F ~ 104F)
  • Storage Temperature: -20C ~ 60C (-5F ~ 140F)
  • Relative Humidity: 5% ~ 95% RH
• OS Supported:
  • Supported Client OS: Windows OS, Mac OS, Linux OS
  • Supported Web Browsers: Google Chrome 97.0.xxxx, Mozilla Firefox 9.3,Apple Safari 12.1 ; Microsoft Edge 99.0.xx or later version
  • Supported mobile OS: iOS12.0, Android 10.0 or later version
• Storage Management:
  • Supported RAID Types: TRAID, Single, JBOD, RAID 0, RAID 1
  • Maximum Internal Volume Number: 64
  • Maximum iSCSI Target: 32
  • Maximum iSCSI LUN: 32
  • Volume Expansion with Larger HDDs: TRAID, RAID 1
  • RAID Migration
  • SSD Cache
  • Hard Drive S.M.A.R.T.
  • Seagate IHM
  • Shared Folder Snapshot
• File Services:
  • File Protocol: SMB/AFP/NFS/FTP/SFTP/WebDAV
  • Maximum Concurrent SAMBA/AFP/FTP Connections: 100
  • Windows Access Control List (ACL) Integration
  • NFS Kerberos Authentication
• Account & Shared Folder:
  • Maximum local user's account number: 128
  • Maximum local group number: 128
  • Maximum shared folders number: 128
  • Maximum shared folders syncing tasks: 2
• Backup:
  • Rsync Backup
  • Duple Backup
  • Snapshot
  • USB Backup
  • Cloud Sync
  • Time Machine Backup
  • File System Snapshot
  • TFM Backup
• Networking:
  • TCP/IP: IPv4/IPv6
  • Protocols: CIFS/SMB, NFS, FTP, SFTP, HTTPS, SSH, iSCSI, SNMP
  • DLNA Compliance
  • VPN Client
  • VPN Server
  • Proxy Client
  • UPnP/Bonjour Discovery
  • TNAS.online Remote Access
  • DDNS
• Access Right Management:
  • Import/Export users
  • User Quota Managerment
  • Local user access control for CIFS/SAMBA and FTP
• Domain Authentication:
  • AD Domain
  • LDAP Client
• Security:
  • Firewall Protection
  • Account Auto block Protection
  • AES Volume and Shared Folder Encryption
  • Importable SSL certificate
  • Instant Alert via email, SMS, Beep
  • RSA 2048 Encryption (TOS 5.0)
  • PAM (Pluggable Authentication Modules)
  • OTP Authentication (TOS 5.0)
  • HyperLock File System (TOS 5.0)
• Power Managerment:
  • Power Resume
  • Scheduled Power On/Off
  • Wake up On LAN (WOL)
  • UPS Supported
• Administration:
  • Multi-window, Multi-task System Management
  • Custom Desktop
  • Control Panel
  • Resource Monitor
  • Syslog
  • OS UI Language: English, German, French, Spanish, Italian, Magyar, Chinese, Japanese, Korean, Turkish, Portuguese, Russian
• Applications:
  • Application Center
  • iSCSI Target
  • Terra Photos
  • Double Backup
  • CloudSync
  • USB Backup
  • VPN Server
  • Transmission
  • Aria 2
  • Web Server
  • EMBY
  • Multi Media Server
  • Plex Media Server
  • Docker Manager
  • Snapshot

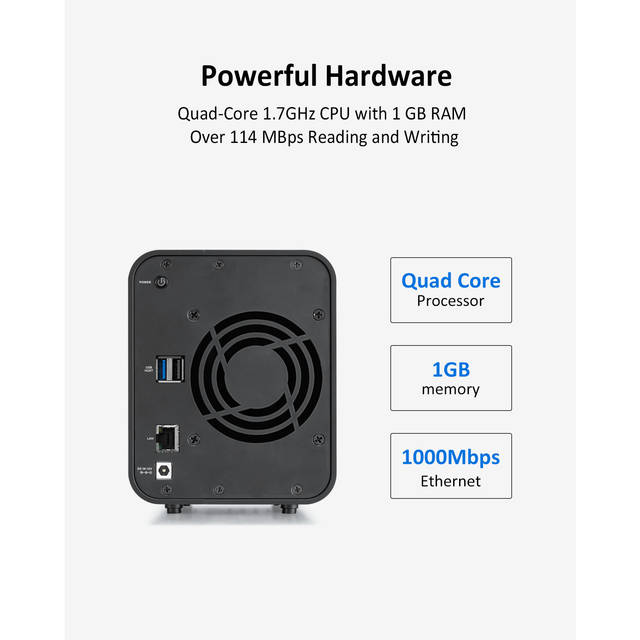

• External Ports:
  • RJ-45 1GbE Network Jack: 1Read: 112MB/sWrite:110MB/s
  • 1 x USB3.0 Host Port
  • 1 x USB2.0 Host Port
• System Fan: 80 mm x 80 mm x 25 mm 1 pcs
• Fan Mode: Smart, High speed, Middle speed, Low speed
• Noise Level:
  • 19.0 dB(A) (Using 2 SATA HDD/SSD in standby state)
  • The microphone is placed at a distance of 1 meter from the device.
  • Background noise: 17.3 dB(A)
• Power Supply: 40W
• AC Input Voltage: 100V ~ 240V AC
• Current Frequency: 50/60 Hz, single frequency
• Power Consumption:

  • 20.1W(Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in read/write state)

  • 10.4 W (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in hibernation)
• Certificate: FCC, CE, CCC, KC
• Environment: RoHS, WEEE
• Dimensions (H*W*D): 222 x 119 x 154 mm
• Package Dimensions (H*W*D): 258 x 220 x 170 mm
• Weight: 1.3 kg (Net); 2.1 kg (Gross)
• Limited warranty: 2 years
• Package Contents: Host unit (x1), Power cord (x1), RJ45 network cable (x1), Quick Installation Guide (x1), Limited Warranty Note(x1), Screws(a few), Power adapter (x1)
