Specifications

• Mfr Part Number: D5 HYBRID
• Storage:
  • Disk Slot Number: 2

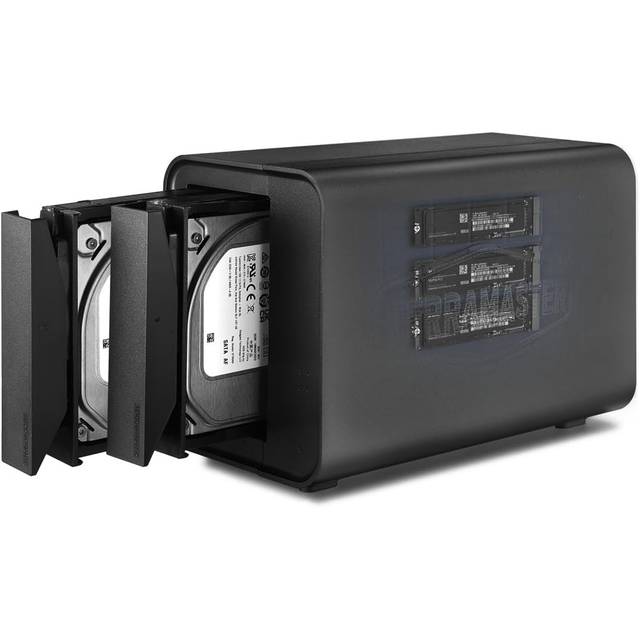

  • Compatible Disk Type: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
  • M.2 2280 NVMe Slot: 3
  • File System: NTFS, APFS, Mac OS, FAT32, EXT4, exFAT
  • Maximum Internal Raw Capacity: 68 TB (22 TB drive x 2 + 8 TB drive x 3) (Capacity will vary along with the RAID type)
  • RAIDs Supported: SINGLE DISK, JBOD, RAID 0, RAID 1
  • Hardware RAID
  • RAID Auto-rebuilding
  • HDD Sleep
• External Ports:
  • USB Host: USB3.2 Type-C gen2 10Gbps
  • Power Socket: DC IN 12V
• Reading Speed (max.):
  • Read: 565MB/s (HDD*2_RAID0)
  • Read: 960MB/s (SSD*2_RAID0)
  • Read: 980MB/s (NVMe M.2 SSD*1)
• Writing Speed (max.):
  • Write: 524MB/s (HDD*2_RAID0)
  • Write: 956MB/s (SSD*2_RAID0)
  • Write: 880MB/s (NVMe M.2 SSD *1)

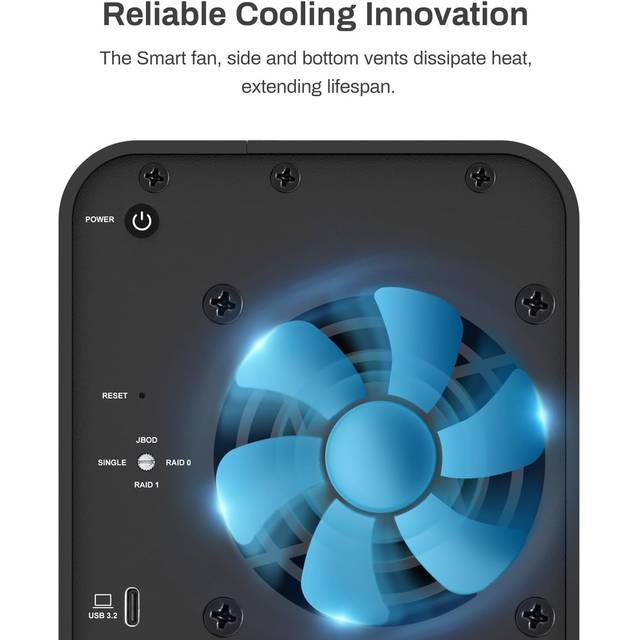

• System fan: 80 mm x 80 mm x25mm (x 1)
• Fan mode: Smart
• Noise Level:

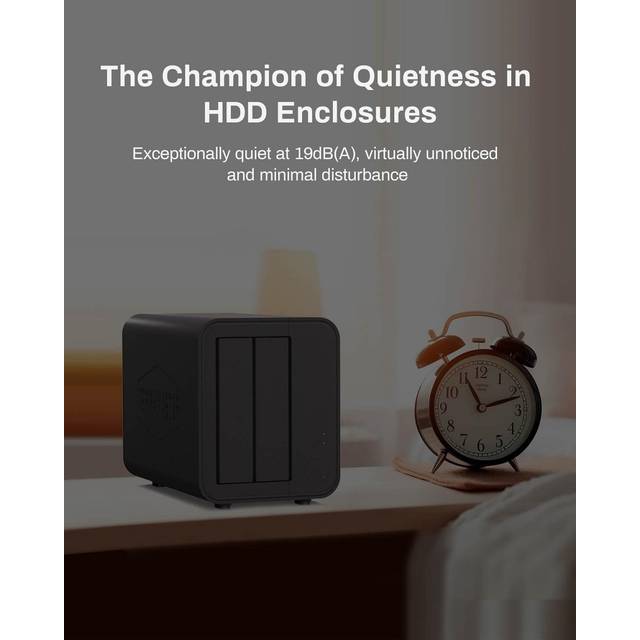

  • 19.0 dB(A) (Using 2 SATA HDDs/SSDs in standby mode)
  • The microphone is placed at a distance of 1 meter from the device.
  • Background noise: 17.3 dB(A)
• Power Supply:
  • Power Supply: 40 W
  • AC Input Voltage: 100V to 240V AC
  • Current Frequency: 50/60 HZ, Single Phase
  • Power Consumption:
    • 0 W(Fully loaded Seagate 22TB ST22000NM001E hard drive(s) and SAMSUNG 980 NVMe M.2 SSD in read/write state)
    • 10.1 W (Fully loaded Seagate 22TB ST22000NM001E hard drive(s) and SAMSUNG 980 NVMe M.2 SSD  in hibernation)
• Environment Temperature:
  • Working Temperature: 0C - 40C (32F - 104F)
  • Storage Temperature: -20C - 60C (-5F - 140F)
  • Relative Humidity: 5% - 95% RH
• Supported OS: Windows OS, Mac OS, Linux
• Certificate: CE, FCC, CCC, KC
• Environment: RoHS compliance
• Package Contents:
  • Host unit (x1)
  • USB Cable C to Type-C (10Gb) 1 Meter
  • Quick Installation Guide (x1)
  • Power adapter (x1)
  • Screws (several)
  • Limited Warranty Note x 1
• Size: 222 x 119 x 154 mm
• Packaging Size: 258 x 220 x 170 mm
• Weight:
  • Net Weight: 1.3 Kg
  • Gross Weight: 2.1 Kg
• Warranty: 2 years
