Specifications

• Mfr Part Number: D5-300C
• Feature:
  • Exclusive 2+3 RAID Storage

  • Real SUPERSPEED with USB3.0 Protocol
  • USB Type-C interface
  • Up to 90TB storage capacity
  • Compatible with various hard drives
  • Aluminum Enclosure
  • Various applications
  • D5-300C has passed multiple certifications, including FCC, CE, UL, GS, and RoHS.
• Storage:
  • Disk Slot Number: 5
  • Compatible Drive types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
  • File System: FAT 32, FAT 16, NTFS, and EXT4
  • Maximum Internal Raw Capacity: 90TB (18 TB drive x 5) (Capacity will vary along with the RAID type)
  • RAIDs Supported: SINGLE DISK,RAID 0,RAID 1
  • Hardware RAID
  • RAID Auto-rebuilding: RAID 1

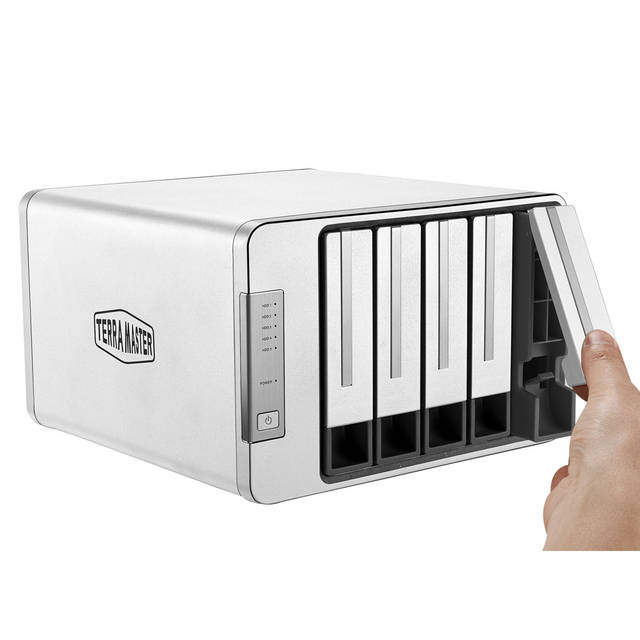

  • Drive Hot Swap
  • HDD Sleep
• Working Temperature
  • Working Temperature: 5C ~ 40C (40F ~ 104F)
  • Storage Temperature: -20C ~ 60C (-5F ~ 140F)
  • Relative Humidity: 5% ~ 95% RH
• Supported OS: Windows OS, Mac OS
• Reading/writing Speed (max.)
  • Reading Speed (max.): 410MB/s (2 SSHD RAID0 mode)
  • Writing Speed (max.): 400MB/s (2 SSHD RAID0 mode)

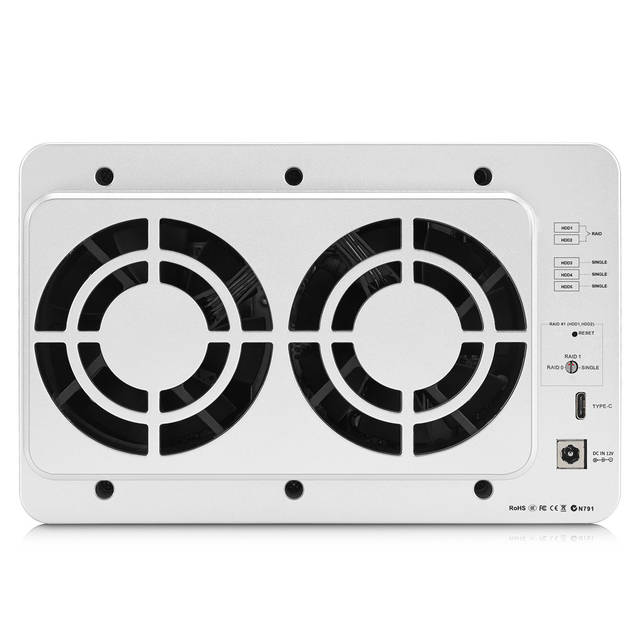

• External Ports: 1 x USB3.1 Type C gen1, 1 x DC IN 12V Power Socket
• System Fan: 80 mm x 80 mm x 25 mm 2 pcs
• Fan Mode: Smart
• Noise Level: 19.8dB(A)
• Power Supply: 90W
• AC Input Voltage: 100V to 240V AC
• Current Frequency: 50/60 Hz, single Phase
• Power Consumption: 45.6W (Access)
• Warranty: 2 years
• Certificate: FCC, CE, CCC, KC
• Environment: RoHS compliance
• Dimensions (WxDxH): 225.0 x 136.0 x 227.0 mm
• Package Dimensions (WxDxH): 275.0 x 186.0 x 300.0 mm
• Weight: 2.10Kg (Net); 3.50Kg (Gross)
• Package Contents: Host unit (x1), Power cord (x1), USB Cable A to Type C(10Gb) (x1), Quick Installation Guide (x1), Limited Warranty Note(x1), Screws(a few), Power adapter (x1)
