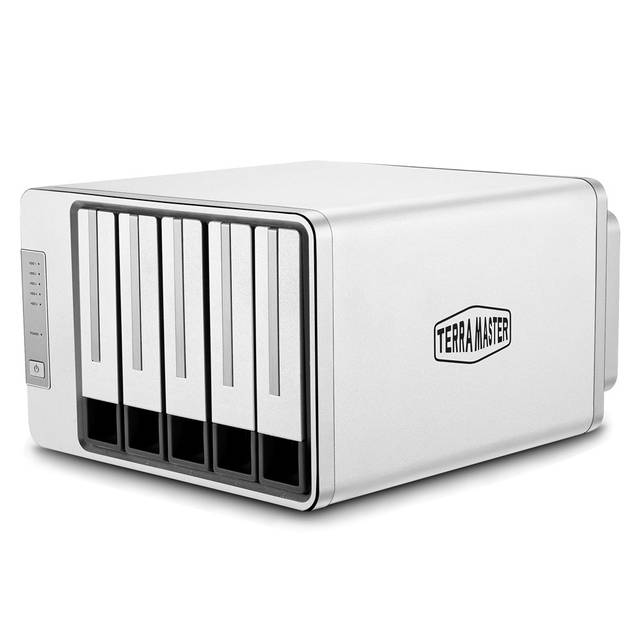

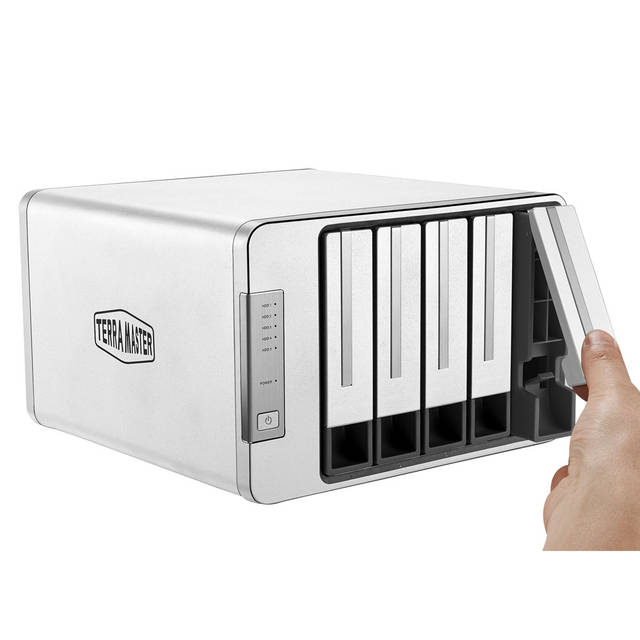

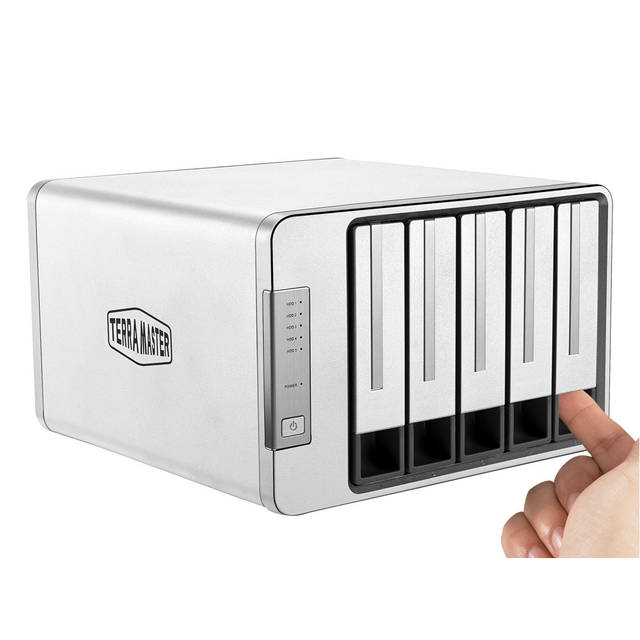

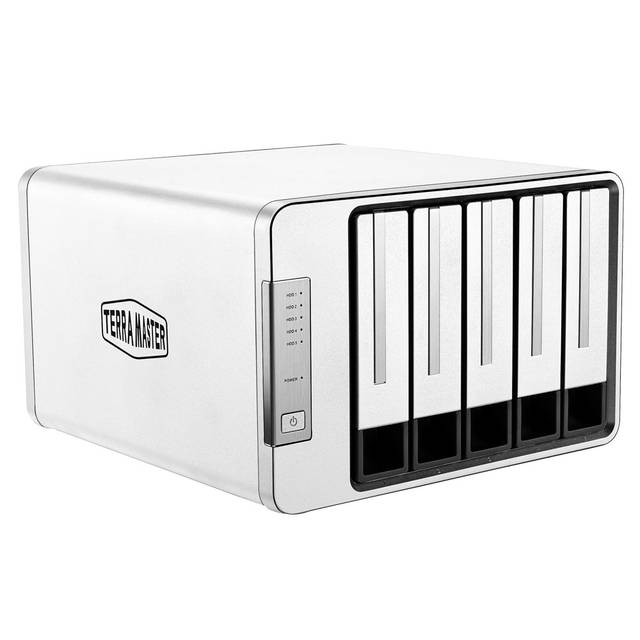

TerraMaster D5-300 USB3.0 5-Bay RAID Storage for Home/SOHO(Diskless)
Share
Email
Facebook
Twitter
Specifications
- Mfr Part Number: D5-300
- Feature
- Ideal for Photo and Video Storage
- Achieve Super Speed with the USB 3.1 Protocol
- Cross-Platform Compatibility
- Up to 90TB Storage Capacity
- The Latest in USB Type-C Interface
- Multiple RAID Modes
- Flexible and Reliable RAID Performance
- Multi-Drive Compatibility
- Worry-Free Power Protection
- Better Protection
- Withstand Continuous, Long-Term, and High-Load Use
- Benefit From Diverse Applications
- Storage
- Disk Slot Number: 5
- Compatible Drive types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
- File System: FAT 32, FAT 16, NTFS, and EXT4
- Maximum Internal Raw Capacity: 90TB (18 TB drive x 5) (Capacity will vary along with the RAID type)
- RAIDs Supported: Support RAID 0RAID 1RAID 5RAID 10CLONEJBODSingle Disk
- Hardware RAID
- RAID Manager Software
- RAID Manager Software Language: English, Chineses, Japanese, German, French, Spanish, Italian
- HDD Sleep
- Working Temperature
- Working Temperature: 5C ~ 40C (40F ~ 104F)
- Storage Temperature: -20C ~ 60C (-5F ~ 140F)
- Relative Humidity: 5% ~ 95% RH
- Supported OS: Windows OS, Mac OS
- Reading/writing Speed (max.)
- Reading Speed (max.): 210MB/s (2 SSHD RAID0 mode)
- Writing Speed (max.): 190MB/s (2 SSHD RAID0 mode)

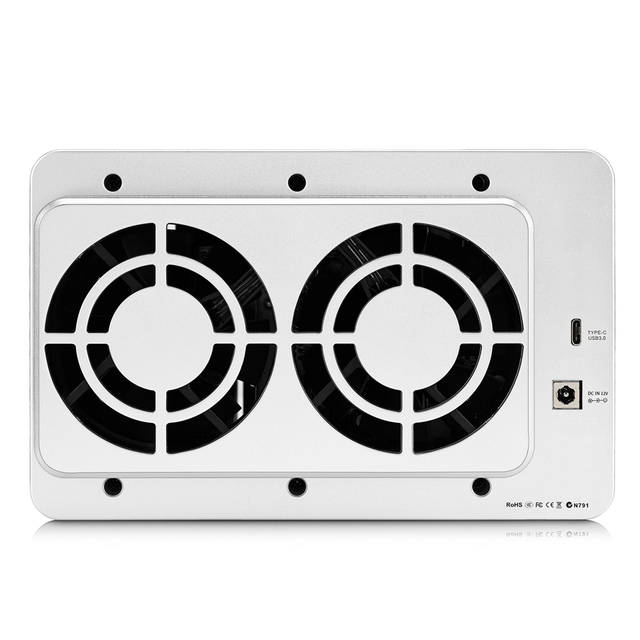

- External Ports: 1 x USB3.1 Type C gen1, DC IN 12V Power Socket
- System Fan: 80 mm x 80 mm x 25 mm 2 pcs
- Fan Mode: Smart
- Noise Level: 19.8dB(A)
- Power Supply: 90W
- AC Input Voltage: 100V to 240V AC
- Current Frequency: 50/60 Hz, single Phase
- Power Consumption: 45.6W (Access)
- Warranty: 2 years
- Certificate: FCC, CE, CCC, KC
- Environment: RoHS compliance
- Dimensions (WxDxH): 225.0 x 136.0 x 227.0 mm
- Package Dimensions (WxDxH): 275.0 x 186.0 x 300.0 mm
- Weight: 2.10Kg (Net); 3.50Kg (Gross)
- Package Contents: Host unit (x1), Power cord (x1), USB Cable A to Type C (10Gb) (x1), Quick Installation Guide (x1), Limited Warranty Note (x1), Screws (a few), Power adapter (x1)
