Specifications

• Mfr Part Number: D4-THUNDERBOLT 3
• Feature
  • Large Storage Capacity
  • Lighting Speed
  • Multi-Screen Display
  • Dedicated DP Interface
  • Multiple RAID Supports
  • Professional and Safe
  • The Ideal Companion for All Professionals
  • Authoritative Quality Certification
• Storage:
  • Disk Slot Number: 4
  • Compatible Drive types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
  • HDD format: FAT 32, FAT 16, NTFS, and EXT4
  • Max. storage capacity: 64TB (16TB HDD x 4, the net capacity may vary according to RAID type)
  • RAIDs Supported: RAID 0, RAID 1, RAID 5, RAID 10, JBOD, and Single
  • RAID online expansion: RAID 1, RAID 5 , and RAID 10

  • RAID migration: Single to RAID1, Single to RAID5, RAID1 to RAID5
  • RAID Auto-rebuilding
  • Drive Hot Swap
  • HDD hot plug
  • HDD Sleep
  • HDD S.M.A.R.T. inspection
  • Sector inspection and parity check
  • Read-write cache
  • Daisy chain cascading
  • HDD NCQ technology
  • Email alert notice
  • EvEvent log
• Working Temperature:
  • Working Temperature: 5C ~ 40C (40F ~ 104F)
  • Storage Temperature: -20C ~ 60C (-5F ~ 140F)
  • Relative Humidity: 5% ~ 95% RH
• Read-write speed (max.):
  • Read: 936MB/sec(Use HDD under RAID 0 mode)
  • Read: 660MB/sec(Use HDD under RAID 5 mode)
  • Write: 762MB/sec (Use HDD under RAID 0 mode)
  • Write: 450MB/sec (Use HDD under RAID 5 mode)

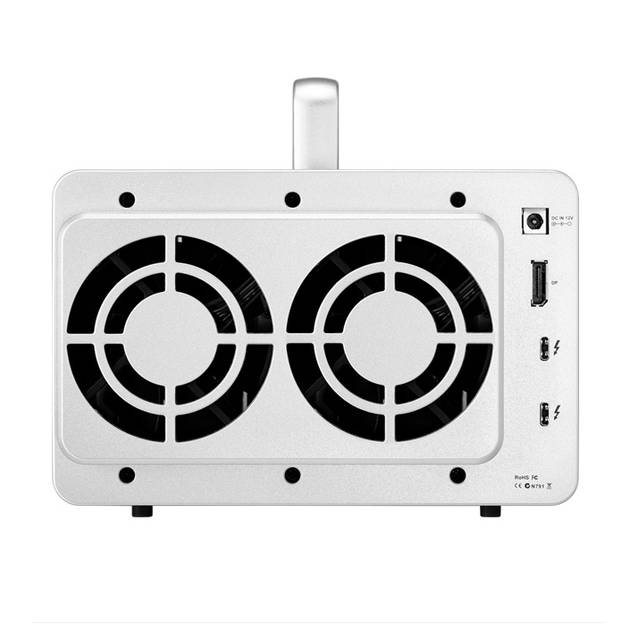

• Data transmission interface: Thunderbolt 3 x 2;

• Data Calbe: 0.8m 40Gbps thunderbolt cable

• DP interface: DP1.2

• Power interface: DC IN 12V
• System Fan: 80 mm x 80 mm x 2 pcs
• Fan type: Temperature controlled
• Noise Level: 19.5dB(A)
• Shell material: Aluminum alloy
• AC Input Voltage: 100V to 240V AC
• Current Frequency: 50/60 Hz, single frequency
• Power: 76.8W(Operating mode); 2.6W(five 2TB hard disks)(Sleep mode)
• Supported operating systems: 64-bit Windows 8/10; Mac OS 10.12 (or later version).
• Warranty: 2 years
• Certificate: FCC, CE, CCC, UL
• RoHS compliance
• Dimensions (WxDxH): 227.0 x 225.0 x 136.0 mm
• Weight: 2.45 Kg (Net); 3.93Kg (Gross)
• Package Contents: product unit (x1), accessories package (x1), quick Installation Guide (x1), power supply (x1), power cord (x1), thunderboly cable (x1)
