Specifications

• Mfr Part Number: D4-320
• Features:

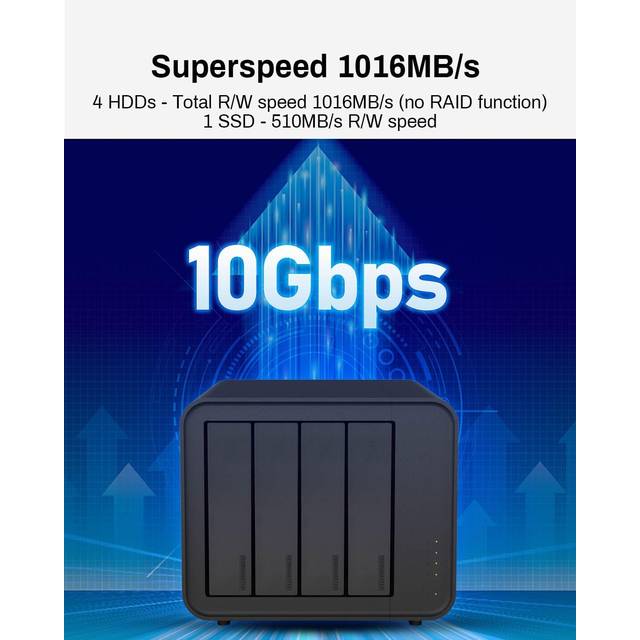

  • High-Speed Data Transmission: The D4-320 hard drive enclosure utilizes the USB 3.2 Gen2 protocol, achieving high-speed data transmission of up to 10Gbps. When equipped with four hard drives, the actual read/write speed can reach up to 1,016 MB/s (combined read/write with four SATA III HDDs of 8TB each). With just one SSD installed, the read speed effortlessly reaches 510 MB/s (SATA III 1TB SSD). The D4-320 supports a single HDD up to 22TB, with a total capacity of 88TB, and is compatible with various hard drives, including 3.5-inch SATA hard drives, 2.5-inch SATA hard drives, and 2.5-inch SATA SSDs.
  • Plug-and-Play Compatibility: The D4-320 USB storage supports 4 individual disks (NO RAID function), and is plug-and-play, eliminating the need for drivers. It is highly compatible with MAC, Windows, and Linux operating systems. The USB Type-C interface supports various computer interfaces, including USB 3.0, USB 3.1, USB 3.2, Thunderbolt 3, and Thunderbolt 4.
  • Hot Swappable Convenience: The D4-320 HDD enclosure supports hot swapping, allowing users to replace hard disks without powering off the device. This feature enhances convenience and efficiency in data transfer processes.

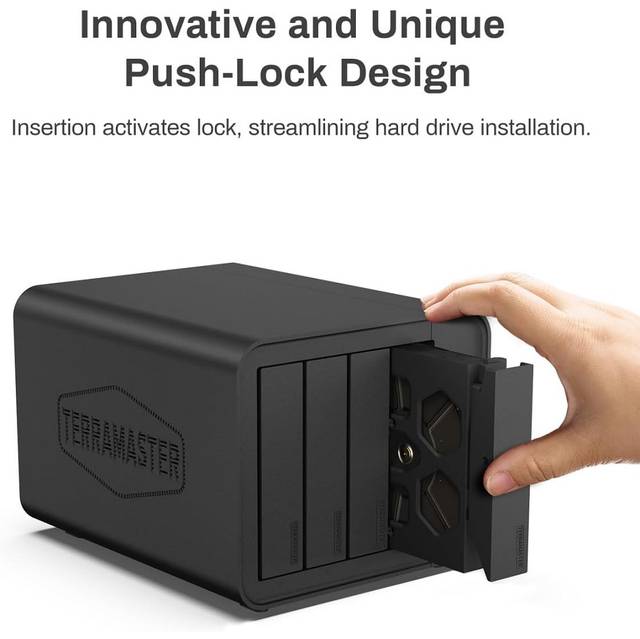

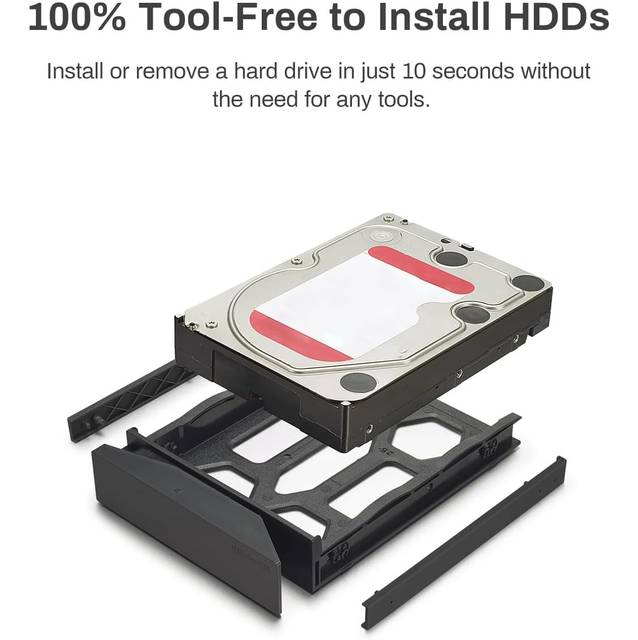

  • Tool-Free Hard Drive Management: Featuring a tool-free hard drive tray design, the D4-320 external HDD enclosure enables easy installation and removal of hard drives without requiring additional tools. Furthermore, the D4-320 incorporates TerraMaster's unique Push-lock design, automatically securing the hard drive tray upon insertion, preventing the hard drive from falling out or disconnecting.

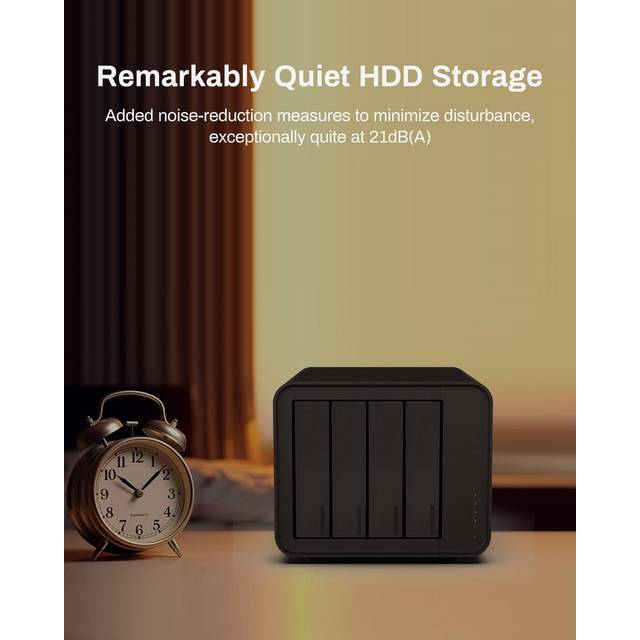

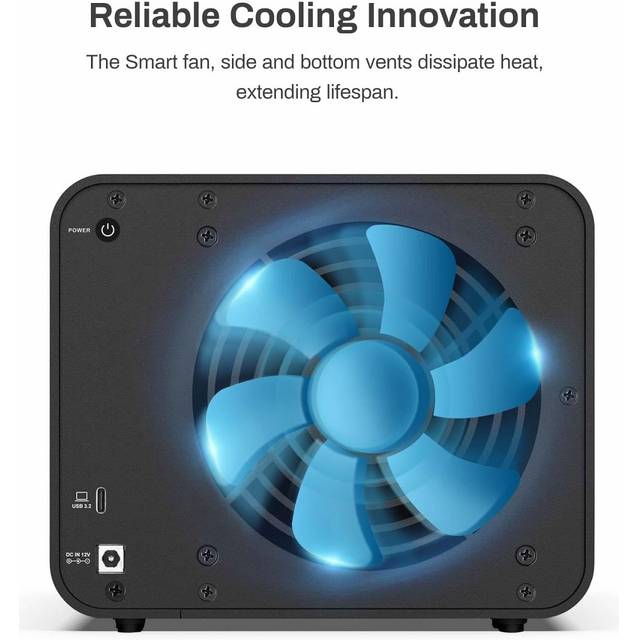

  • Efficient Heat Dissipation and Quieter Operation: The D4-320 direct attached storage incorporates an intelligent temperature-controlled fan for optimal heat dissipation. Additionally, specialized sound-absorbing panels and vibration damping measures contribute to a quieter operation, with noise levels reduced by up to 50% compared to the previous generation. In standby mode, the noise level drops below 21 dB(A), creating a remarkably quiet user environment.
• Storage:
  • Disk Slot Number: 4
  • Compatible Disk Type: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
  • File System: NTFS, APFS, Mac OS, FAT32, EXT4, exFAT
  • Maximum Internal Raw Capacity: 88 TB (22 TB drive x 4)
  • RAIDs Supported: SINGLE DISK
  • Drive Hot Swap: Yes
  • HDD Sleep: Yes
• External Ports:

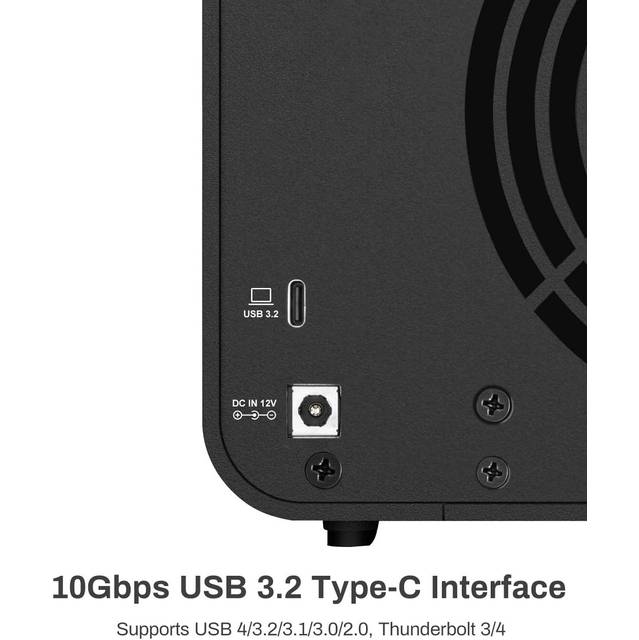

  • USB Host: USB3.2 Type-C gen2 10Gbps
  • Power Socket: DC IN 12V
• Reading Speed (max.):
  • Read: 560MB/s (SSD*1)
  • Read: 1016MB/s (SSD*4)
• Writing Speed (max.):
  • Write: 520MB/s (SSD*1)
  • Write: 960MB/s (SSD*4)
• Others:
  • System fan: 120 x 120 x 25mm 1PCS
  • Fan mode: Smart
  • Noise Level: 21.0dB(A)
• Power Supply:
  • Power Supply: 72 W
  • AC Input Voltage: 100V to 240V AC
  • Current Frequency: 50/60 HZ, Single Phase
  • Power Consumption: 40.8 W(Access), 9.8 W (Hibernation)
• Environment Temperature:
  • Working Temperature: 0C  ~ 40C (32F ~ 104F)
  • Storage Temperature: -20C ~ 60C (-5F ~ 140F)
  • Relative Humidity: 5% ~ 95% RH
• Supported OS: Windows OS, Mac OS
• Certificate: CE, FCC, CCC, KC
• Environment: RoHS compliance
• Package Contents:
  • Host unit (x1)
  • Power cord (x1)
  • USB Cable A to Type-C(10Gb) (x1)
  • Quick Installation Guide (x1)
  • Power adapter (x1)
  • Screws (several)
  • Limited Warranty Note x 1
• Size (H*W*D): 222 x 179 x 154 mm
• Packaging Size (H*W*D): 300 x 275 x 186 mm
• Weight:
  • Net Weight: 1.9Kg
  • Gross Weight: 3.1 Kg
• Warranty: 2 years
• *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country. All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.
