Specifications

• Mfr Part Number: P5-YN1000-G1FFBK1-US
• Features:
  • Brand New Intel ATX 3.1 Certification
  • Native PCI-e 5.1 Power Standard
  • Up to 93.17% Efficiency Conversion
  • Intelligent Start-Stop, Inherent Quietness
  • Innate Ability to Quiet
  • The New "TRIFORCE Design Language, Visually Pleasing
  • Robust Core Architecture, Utmost Reliability
  • Inside and Out, All-Encompassing Safety Protection
  • Connect with Ease, Master the Aesthetics of Installation

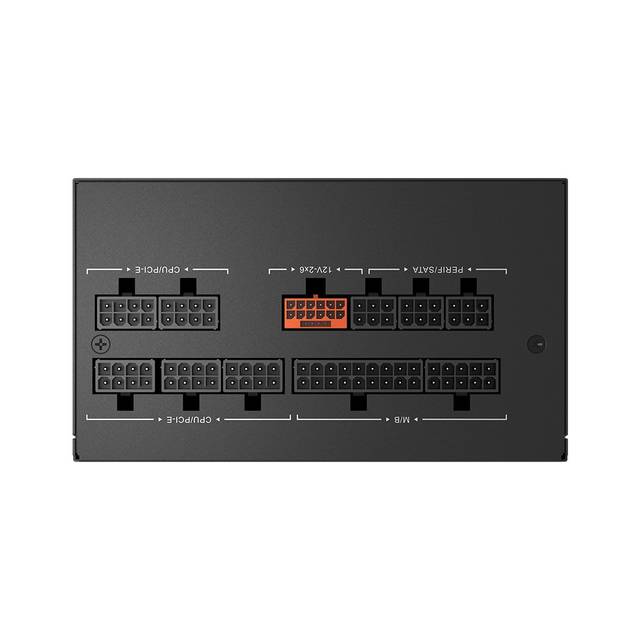

  • Cable Showcase
• Total Power: 1000W
• Product Type: ATX3.1
• Protection: OVP/UVP/OCP/SCP/OTP/OPP/SPD
• Hold Up Time: >16mS (Full load)
• Product Color: Black
• Safety: CB, CE, EAC, UKCA, CCC, FCC, CAN ICES-003(B)/ NMB-003(B), TUV, cTUVus
• 80PLUS Certification: Gold
• Environmental Compliance: Rohs, WEEE, EAEU, ERP2014
• Efficiency: >=90.5% Under Typical Load (50%Loading)
• Capacitor: Full Japanese Electrolytic Capacitors
• Topology: Active PFC+ Full Bridge SRC LLC + DC to DC
• Operating Temperature: 0-40 C
• AC Input: 100-240V AC Full Range
• Mean Time Between Failures: 100, 000 Hours (Fan excepted)
• Product Size: 150x150x86mm
• Fan Work Mode: Thermal Control (switch)
• Fan Speed: 2000+/-10% R.P.M
• Fan Bearing Type: FDB (Fluid Dynamic Bearing)
• Fan Air Flow:  89.79 CFM(TYP), 80.81CFM(Min)
• Fan Air Pressure: 2.67 mm (H2O)
• Fan Noise: 42.7dBA
