Specifications

• Mfr Part Number: MB607SP-B

• Features:
  • Full steel construction commercially designed for Medical & Military systems, Media servers, and IPCs, approved & used by Tier 1 companies

  • Perfect for rugged applications and complies to flammability requirements
  • Fits 4x 5mm to 15mm 2.5" SAS/SATA HDD or SSD in a single external 5.25" bay for high performance RAID applications
  • Support SATA 6Gbps or SAS single channel
  • Requires only a single 15pin power connectors to power all 4 bays
  • Anti-Vibration Technology (AVT) - creates a safe environment for hard drives or SSDs
  • Active Power Technology (APT) - individual LED & cooling fan only powers up if there is a drive installed in the bay
  • Eagle-hook lock system keeps drives secured within the enclosure

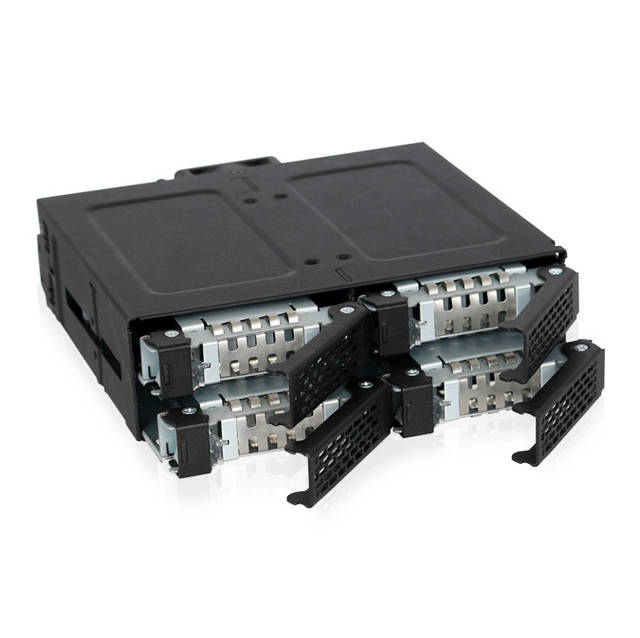

  • Removable tray system for easy maintenance
  • Top Cover for the Tray Adds Extra Drive Protection
  • Heavy Duty Full Steel Construction

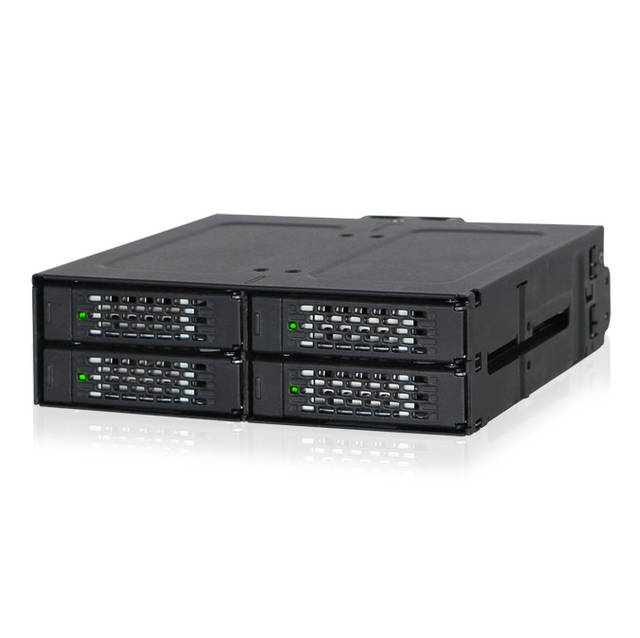

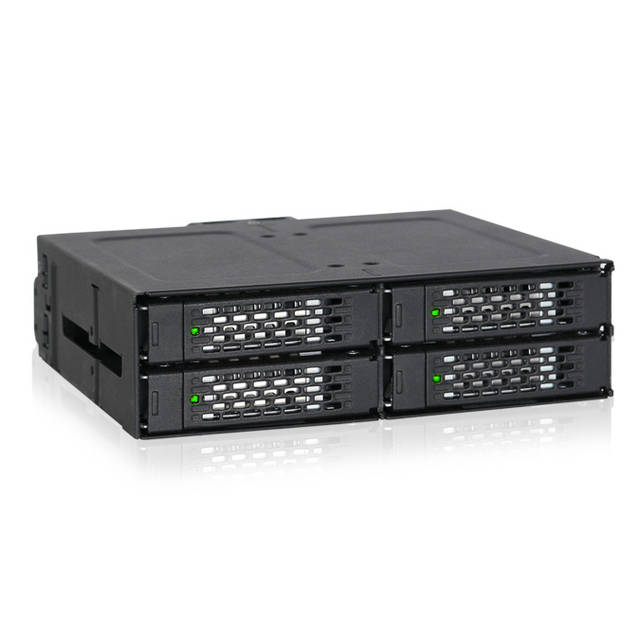

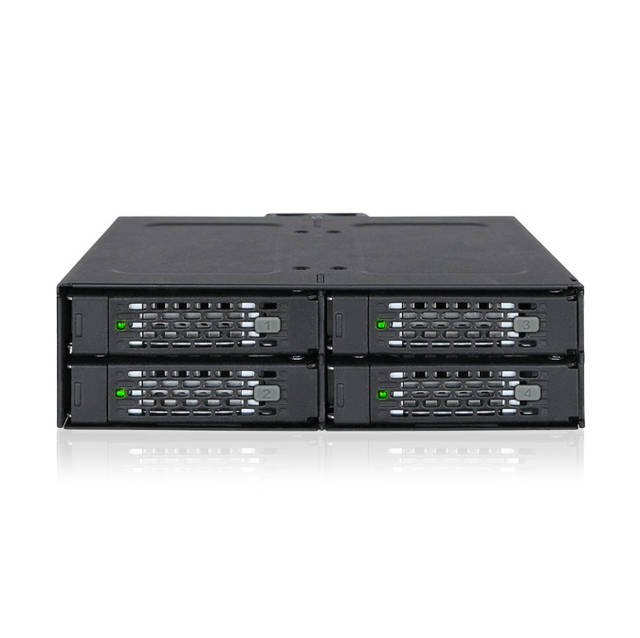

  • Status LED on Front for Each Drive

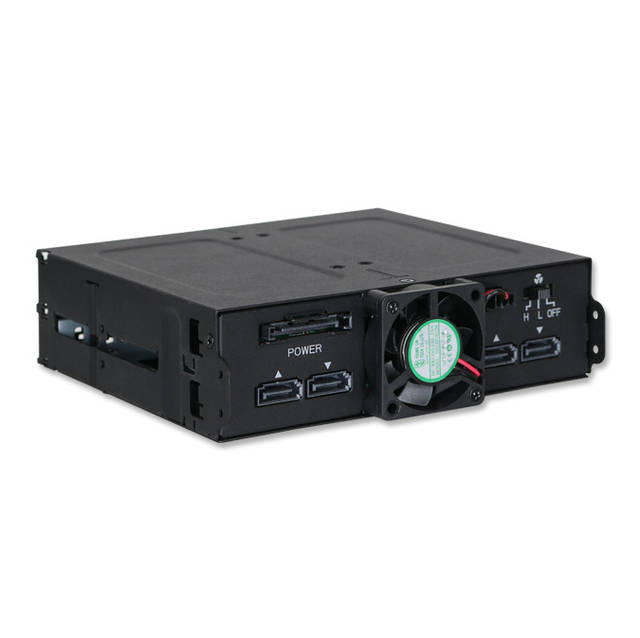

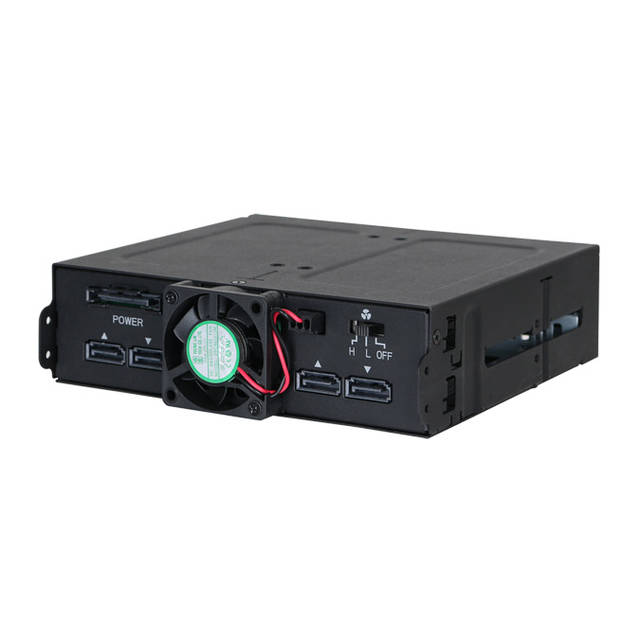

  • 40mm cooling fans with external fan controller for high, low and off setting
  • Small Form Factor Perfect for IPC, Servers, and Small Form Factor Cases
• Support Drive Size: 4x 2.5" SSD / HDD
• Compatible Drive Type: SATA / SAS (Support Single Channel SAS)
• Number of Drives: 4
• Max Drive Height: 15mm
• Drive Bay: 1x external 5.25" drive bay
• Host Interface: 4x SATA 7pin
• Power Input: 1x 15 pin SATA power connector
• Transfer Rate: Up to 6Gbps (Depending on hard drive speed)
• Support HDD Capacity: No Limitation
• Drive Cooling: 1x 40mm fan

• Structure / Material: Full Metal
• Support Hot-Swap: Yes

• Drive Activity LED Indication: Drive power - solid green; HDD access - flashing green

• SATA Connector Insertion Rate: 10,000
• Compliance: CE, RoHS, REACH
• Color: Black

• Dimensions (WxLxH): 146.0 x 142.4 x 41.3 mm
• Weight: 837.0 g
