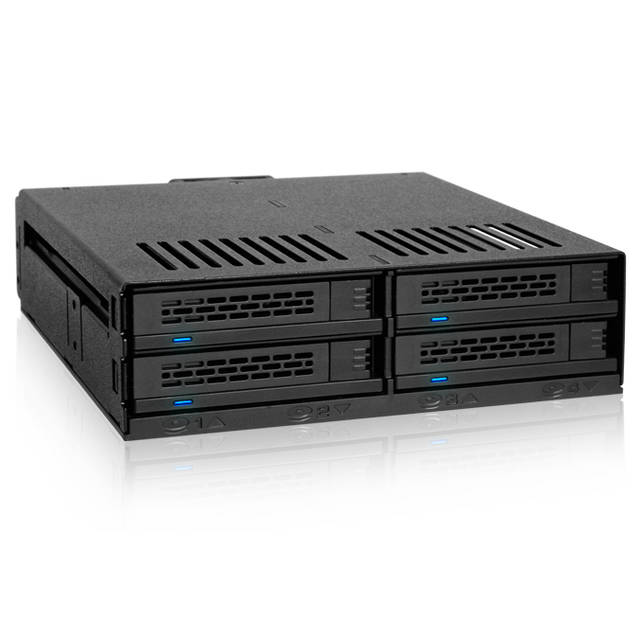

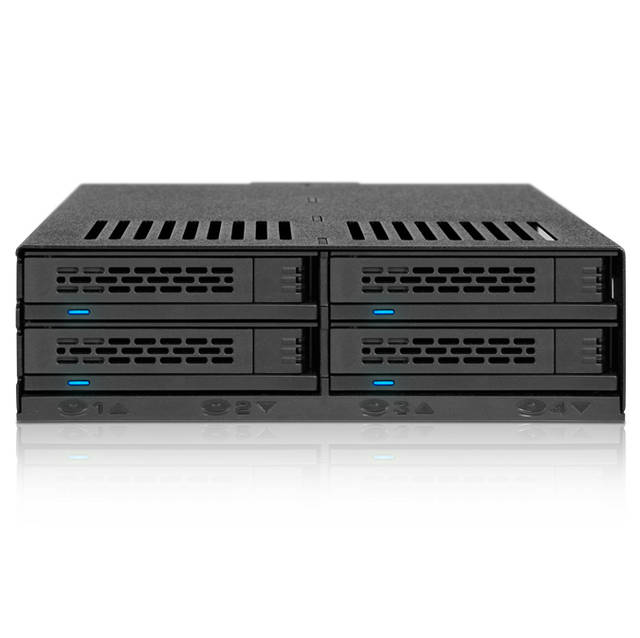

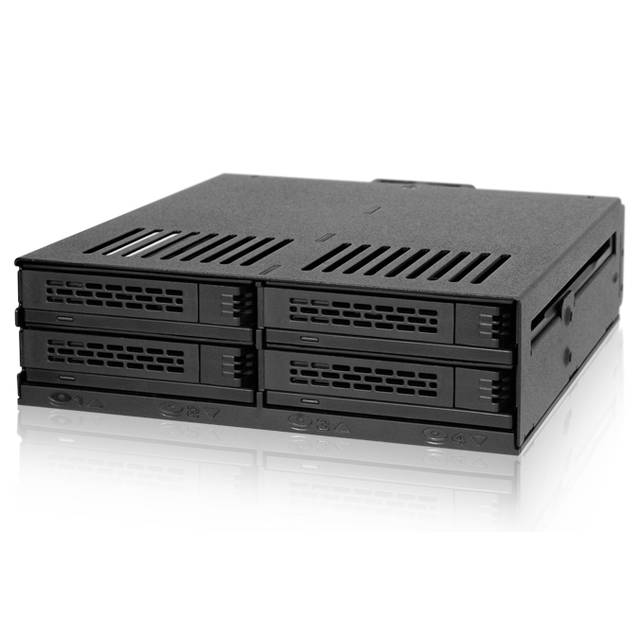

ICY DOCK ExpressCage MB324SP-B 4 Bay 2.5 inch SAS/SATA HDD/SSD Hot Swap Mobile Rack for Single 5.25" Bay (Black)

Specifications

  • Mfr Part Number: MB324SP-B
  • Features:
    • Supports up to 4 x 2.5" SATA/SAS HDD/SSD into a single 5.25" bay
    • Support SATA 6Gbps or SAS single channel (requires SAS host)

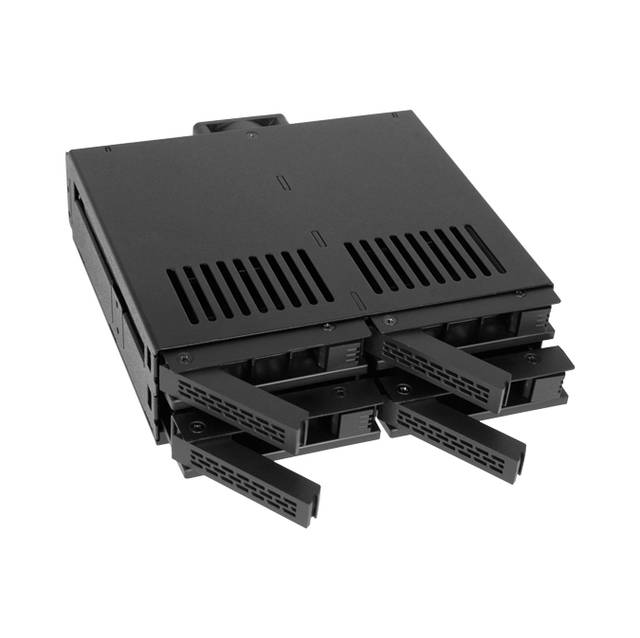

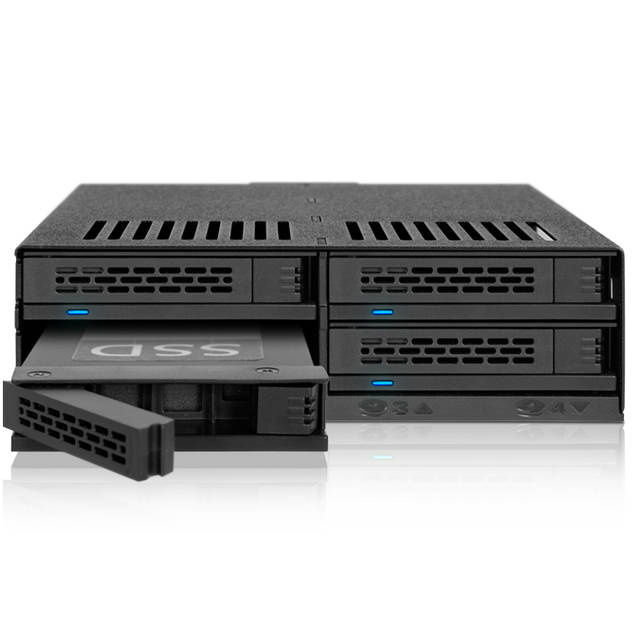

    • Hot-swappable bays for quick drive installation
    • Accommodates 2.5" drives with 7mm, 9mm &12.5mm Height
    • Active Power Technology (APT) - only powers up if there is drive installed in the drive bay

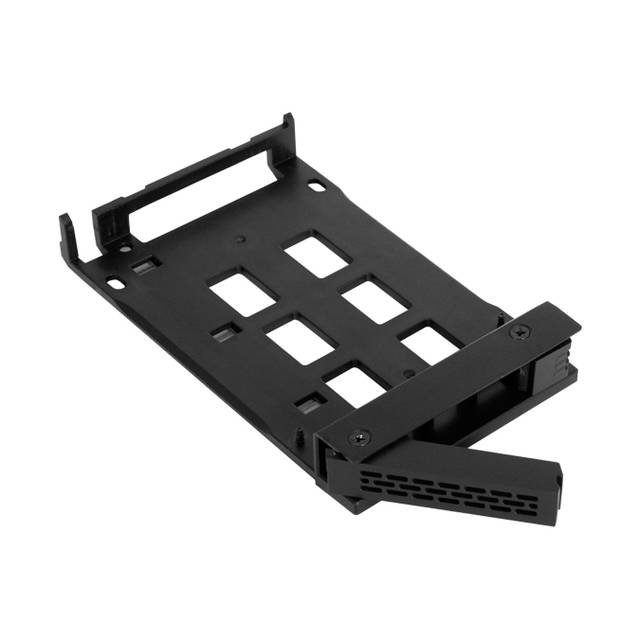

    • Removable ExpressTray system for tool-less, easy installation

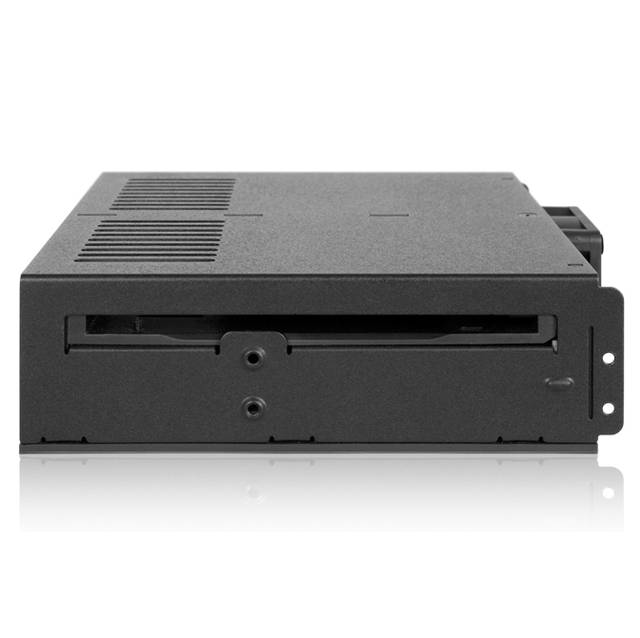

    • Optional bottom mounted screw holes for increased stability
    • Blue indicator LED provided for each bay

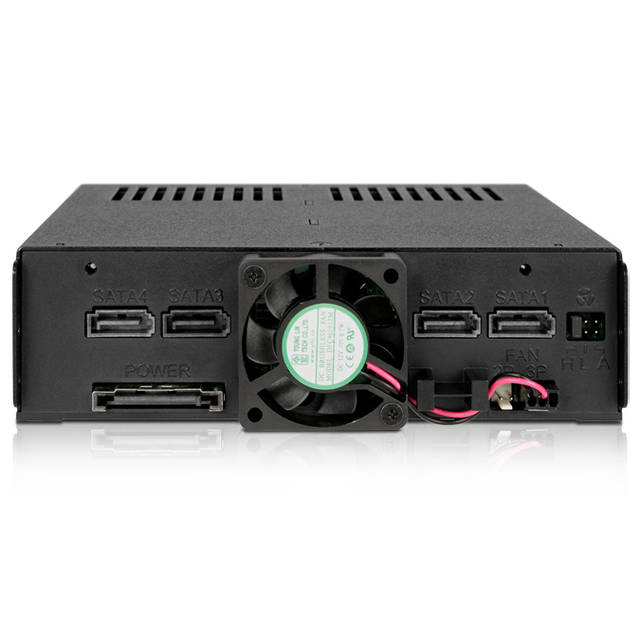

    • 40mm upgradeable fan for drive cooling
    • 2 pin and 3 pin fan headers to support many aftermarket fan upgrades
    • Single 15pin SATA power connection powers all 4 drives
    • Locking latch design for both 7 pin SATA connector and 15 pin power adapter
    • Fan speed control for HIGH, LOW, and AUTO (smart cooling) settings
    • Metal case with heavy duty ABS tray and door latch
    • Designed for power users and system builder applications, mainly space saving and hot swap usage and for 2.5" HDD or SSD
  • Structure: Plastic and metal
  • Drive Fit: 4x 2.5" SATA or SAS (single channel) HDD/SSD
  • Compatible Drive Heights: 7mm, 9.5mm & 12.5mm
  • Device Fit: Single 5.25" Half Height Device Bay
  • Host Interface: 4x 7pin SATA Port
  • Transfer Rate: Up to 6Gb/s (depending on hard drive speed)
  • Insert & Extract Connection Via: Direct SAS/ SATA hard drive connection
  • Power Input: Single 15pin SATA Power Port
  • Drive Cooling: 40mm Rear Cooling Fan
  • Fan Speed Control: High / Low / Auto jumper
  • Indicator:
    • Power: Solid blue LED
    • HDD Access: Blinking blue LED
  • Color: Black
  • Dimensions (WxLxH): 41.3 x 145.8 x 140.5 mm
  • Weight: 440.0 g
