GameMax GX-850 Modular, 80+ Gold ATX Power supply, One of the innovative Gold design basis on Platinum Level, LLC and DC-DC circuit
Share
Email
Facebook
Twitter
Specifications
- Mfr Part Number: GX-850 Modular
- Features:
- The classic efficiency over 92%, The free-cable technology featured
- GameMax GX series power supply 80+ Gold certified that offers great value to gamers and system builders
- FDB Fan reduces heat during heavy load while keeping the noise level down, Designed with stability and durability, GX Series is the perfect choice to power your systemsLLC+DC--DC high-efficiency 80+ Gold APFC Certified
- DC-DC integrated energy storage inductor, quiet and highly efficient100-240Vac full voltage input
- Multiple PCIE interfaces fully support the latest graphics cardsIntegrated all solid capacitor, Free-Cable module output, lower loss powerFarad resonance capacitor is stable and efficient
- 105C mainstream capacitor has long life and smooth output
- The temperature-controlled fan is extremely quiet
- Total SEVEN levels of protection, OTP, OCP, SCP, OVP, UVP, OPP, SIP
- All black flat pure copper output line, efficient and powerful
- Components by SMT produced, Quick heat dissipation and more stable
- Type: ATX
- Cabling (Wired/Semi-Modular/Fully-Modular): Fully-Modular

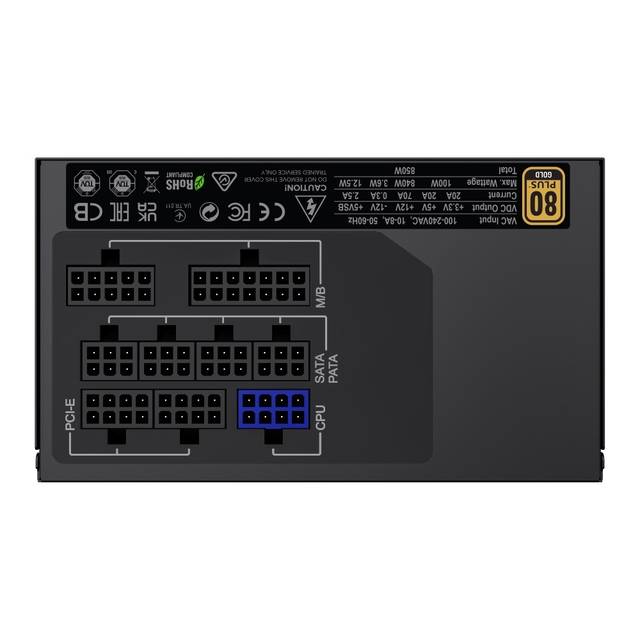

- Connectors:
- 20+4 Pin MB: 550mm*1
- 4+4 Pin CPU: 650+100mm*1
- SATA: 400+150+150mm*2
- Molex 4 Pin: 400+150+150mm*1
- 6+2 Pin PCIe: 600+150mm*2
- Output Currents For DC Inputs: 3.3V 20A; 5V 20A; 12V 70A; -12V 0.3A; +5VSB 2.5A
- Input Voltage: 100-240Vac
- Input Current: 15-8A
- Input Frequency: 50-60Hz
- PFC: APFC
- Power Good Signal: 100-150ms
- Hold Up Time: 16ms( 80% load)
- Efficiency: 80PLUS GOLD
- Protection: OVP, UVP, OPP, OCP, SCP, OTP
- Wattage: 850W
- Maximum Wattage: Same lable power
- Cooling: 12cm Smart slient fan
- Operation Temperature: 0 C to 40 C
- Certification&Safety: CB, TUV, cTUVus, CE, LVD, FCC
- 80 Plus Certified: 80PLUS GOLD
