Specifications

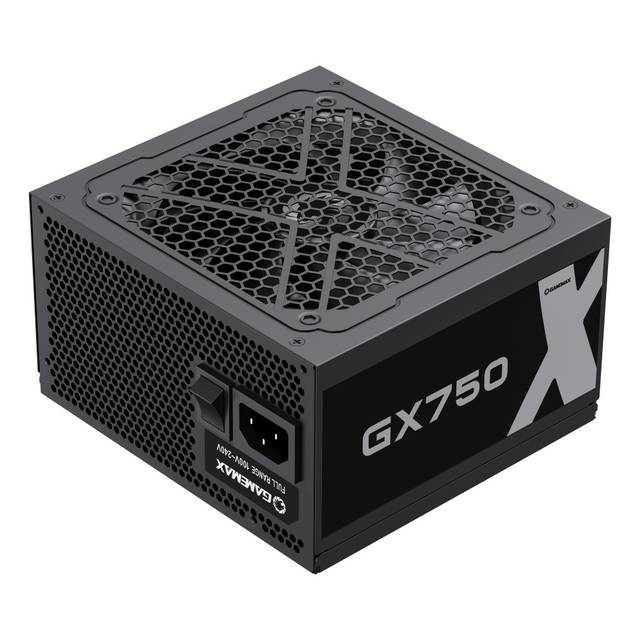

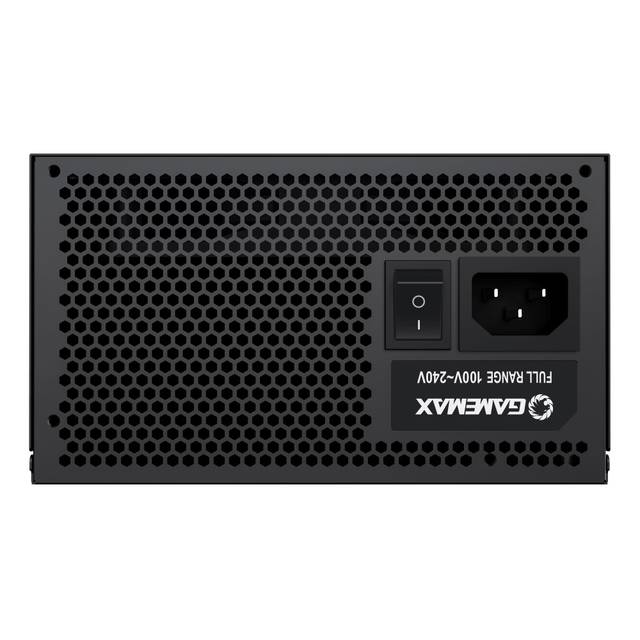

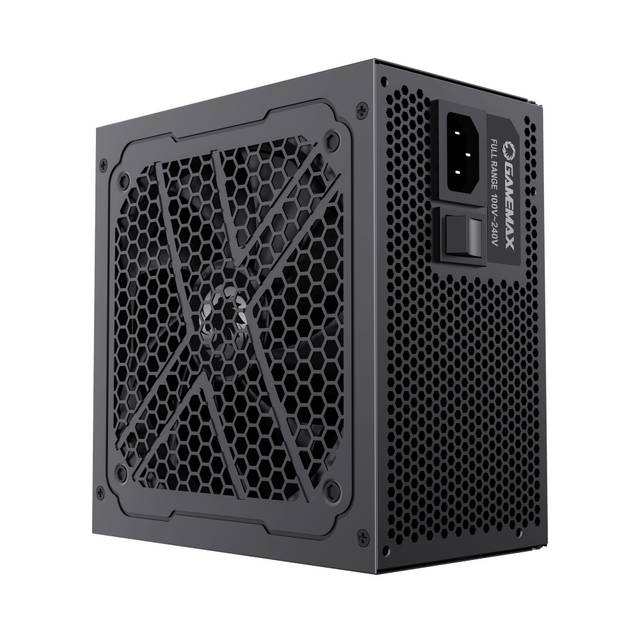

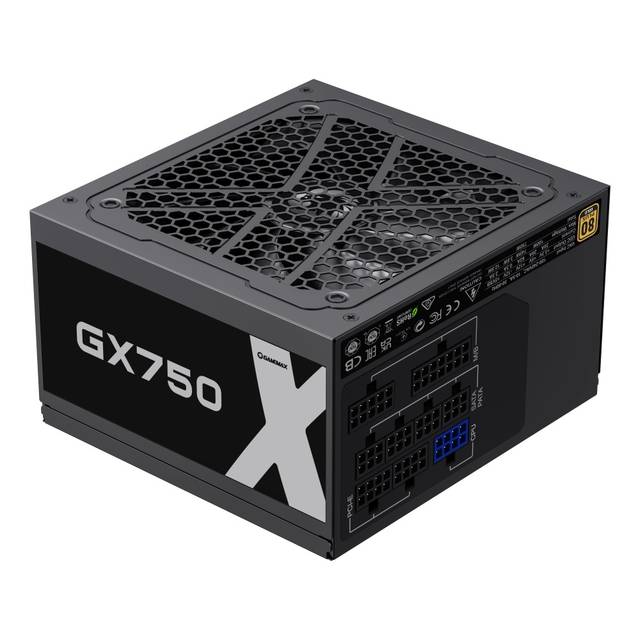

• Mfr Part Number: GX-750 Modular
• Features:
  • Modular Design: Easy cable management for a clean build

  • Quiet Operation: Low-noise FDB fan during heavy loads

  • Stable Components: All-solid capacitors for durability

  • Comprehensive Safety: Seven protection levels for secure operation
• Type: ATX

• Cabling (Wired/Semi-Modular/Fully-Modular): Fully-Modular

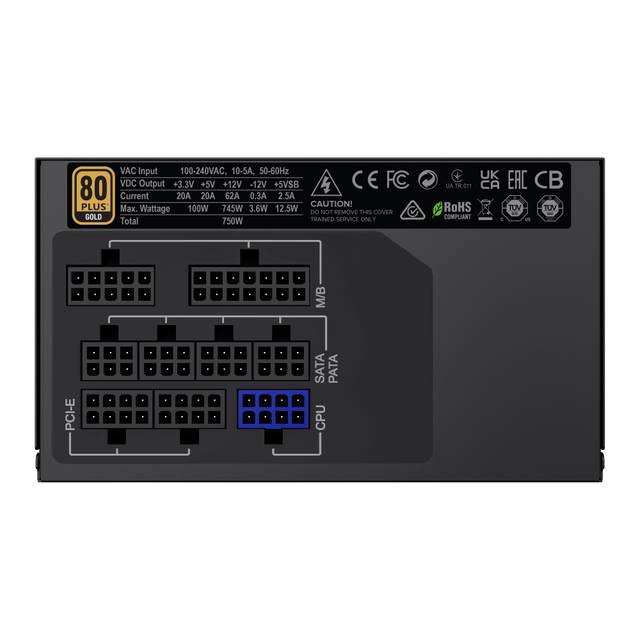

• Connectors:

  • 20+4 Pin MB: 550mm*1

  • 4+4 Pin CPU: 650+100mm*1

  • SATA: 400+150+150mm*2

  • Molex 4 Pin: 400+150+150mm*1

  • 6+2 Pin PCIe: 600+150mm*2

• Output Currents For DC Inputs: 3.3V 20A; 5V 20A; 12V 62A; -12V 0.3A; +5VSB 2.5A

• Input Voltage: 100-240Vac

• Input Current: 10-5A

• Input Frequency: 50-60Hz

• PFC: APFC

• Power Good Signal: 100-150ms

• Hold Up Time: 16ms( 80% load)

• Efficiency: 80PLUS GOLD

• Protection: OVP, UVP, OPP, OCP, SCP, OTP

• Wattage: 750W

• Maximum Wattage: Same lable power

• Cooling: 12cm Smart slient fan

• Operation Temperature: 0 C to 40 C

• Certification&Safety: CB, TUV, cTUVus, CE, LVD, FCC

• 80 Plus Certified: 80PLUS GOLD
