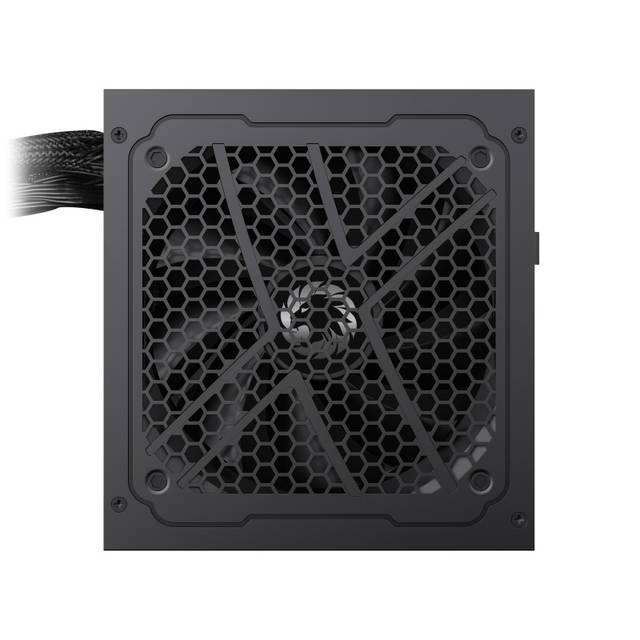

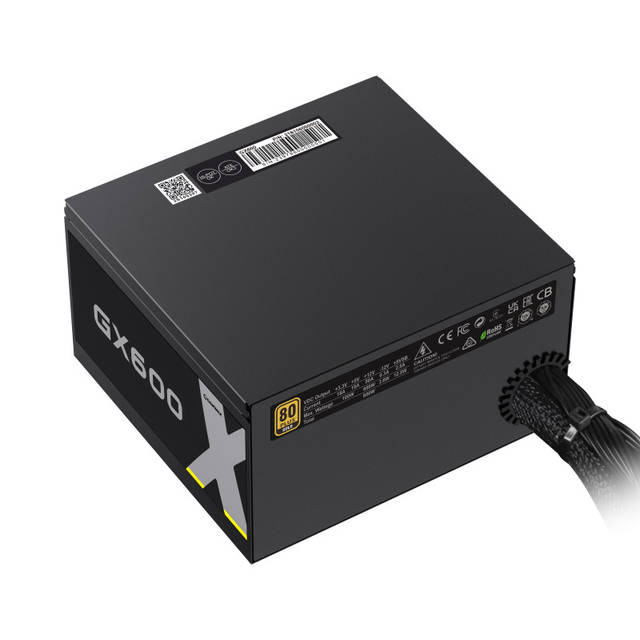

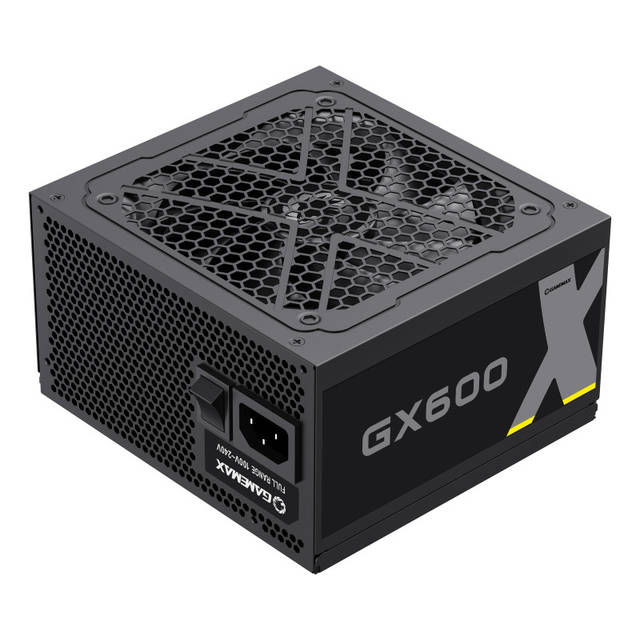

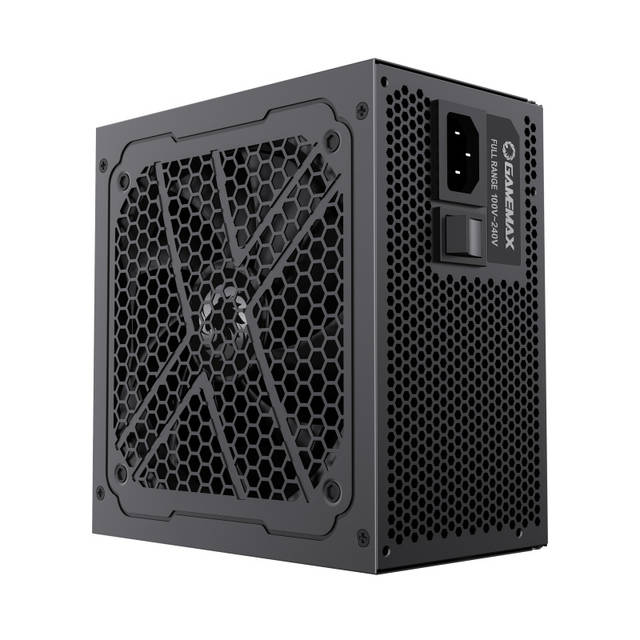

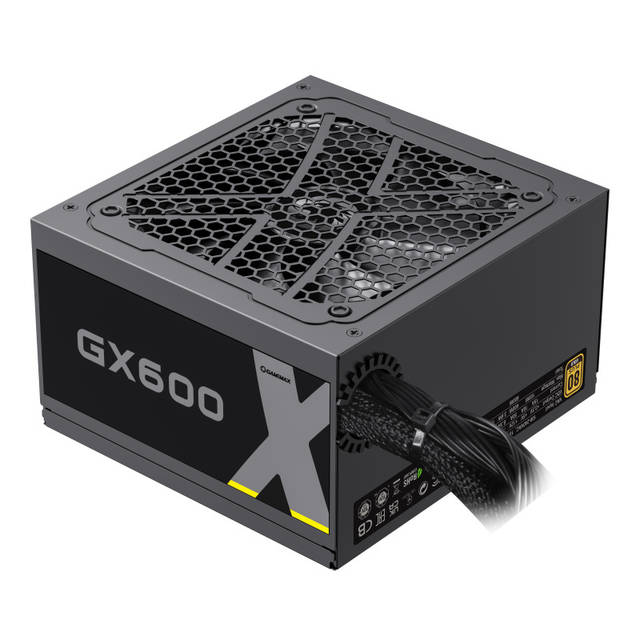

GAMEMAX GX-600 80+ Gold Wired 600W High Efficiency ATX Power Supply, Black
Share
Email
Facebook
Twitter
Specifications
- Mfr Part Number: GX-600
- Feature:
- Silent Operation: FDB fan design keeps noise low, even under heavy loads
- Stable & Durable: Features all-solid capacitors and SMT components for long-lasting reliability
- Broad Compatibility: Supports 100-240Vac input and latest graphics cards with multiple PCIE interfaces
- Comprehensive Protection: Seven levels of safeguards protect your system from potential damage
- Type: ATX
- Cabling(Wired/SemiModular/FullyModular): Wired
- Connectors:
- 20+4 Pin MB: 550mm*1
- 4+4 Pin CPU: 18-650+100mm*1
- SATA: 400+150+150mm*2
- Molex 4 Pin: 400+150+150mm*1
- 6+2 Pin PCIe: 600+150mm*2
- Output Currents For DC Inputs:
- 3.3V, 18A
- 5V, 18A
- 12V, 50A
- -12V, 0.3A
- +5VSB, 2.5A
- Input Voltage: 100-240Vac
- Input Current: 10-5A
- Input Frequency: 50-60Hz
- PFC: APFC
- Power Good Signal: 100-150ms
- Hold Up Time: 16ms( 80% load)
- Efficiency: 80PLUS GOLD
- Protection: OVP, UVP, OPP, OCP, SCP, OTP
- Wattage: 600W
- Maximum Wattage: Same lable power
- Cooling: 12cm Smart slient fan
- Operation Temperature: 0C to 40C
- Certification&Safety: CB, TUV, cTUVus, CE, LVD, FCC
- 80 Plus Certified: 80PLUS GOLD
