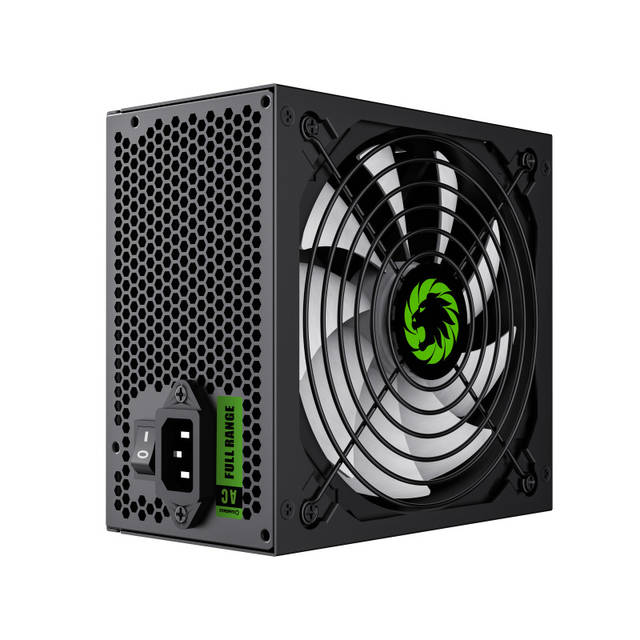

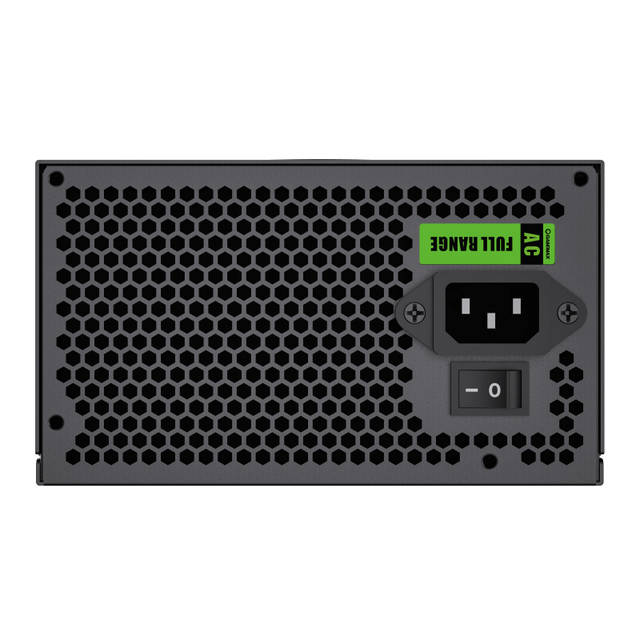

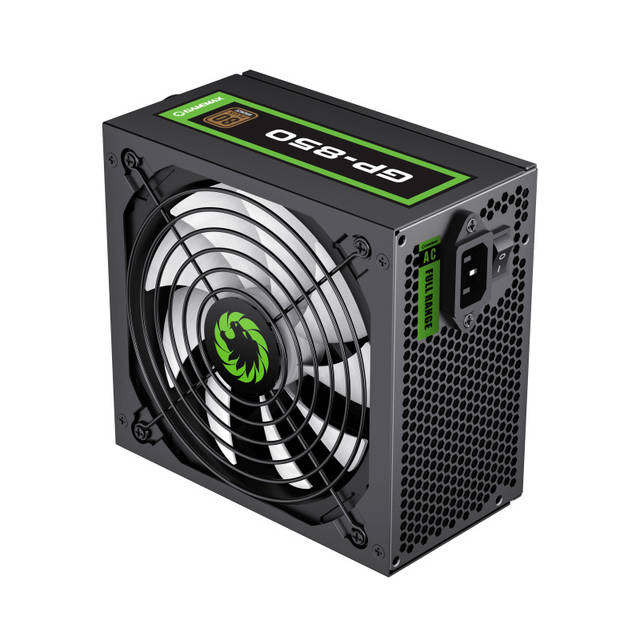

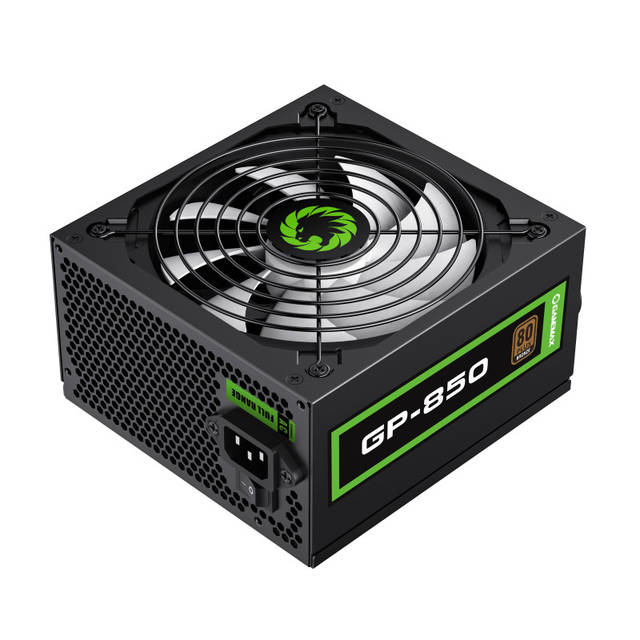

GAMEMAX GP-850 850W 80 Plus Bronze Certified Power Supply, None-Modular PSU, DC-to-DC, Black
Share
Email
Facebook
Twitter
Specifications
- Mfr Part Number: GP-850
- Feature:
- Engineered with high-end components, Elegant black PSU casing with black flat cable
- DC-to-DC technology ensures optimal power efficiency and stable output across all components
- ATX12V 80 PLUS Bronze Certified power supply ensures high energy efficiency and minimizes heat generation
- Extended 12V Rail for high compatibility and extremely high current output
- Longer 12V8pin(4+4) pins up to 650mm is easy for high-end tower chassis installation

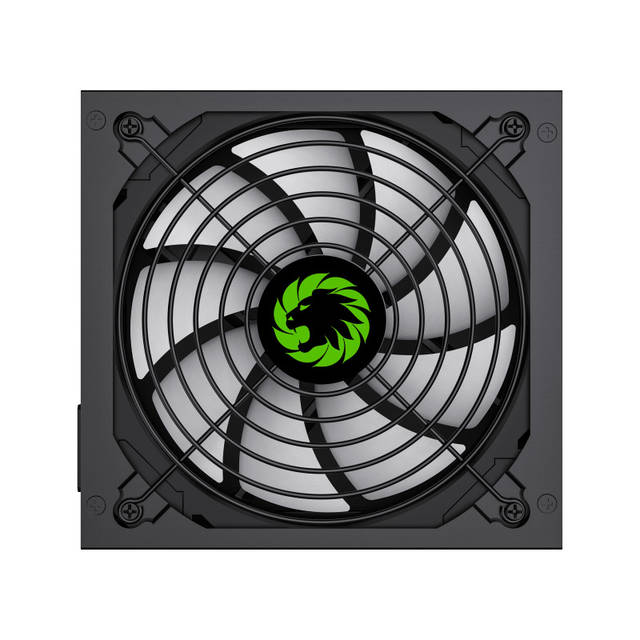

- 14cm silent black fan provides silent operation and efficient cooling system with smart thermal sensor
- Features six essential safety mechanisms providing system stability with OVP/UVP/ OPP/OCP/OTP/SCP
- Safety Certified by TUV Lab with CE strict standards
- PSU Specifications:
- AC Input: 100-240 VAC 15-5A 50-60Hz
- DC Output Max:
- 850W
- +3.3V;+5V;+12V;-12V;+5VSB
- 20A;20A;70A;0.5A;2.5A
- Connectors:
- 20+4 Pin Main Connectors: 1
- 4+4 Pin 12V Connectors: 1
- SATA Connectors: 7
- 4-Pin Molex Connectors: 3
- 6+2 Pin PCI-e Connectors: 4
- Detailed Specifications:
- Dimensions: 158mm x 85mm x 150mm (W x H x D)
- Input Voltage: 100-240 VAC
- Input Current: 15-5A
- Input Frequency Range: 50-60Hz
- PFC: Active PFC (>.99)
- Power Good Signal: 100-150 ms
- Hold Up Time: >10ms
- Efficiency: > 85% (87% max)
- MTBF: > 100,000 Hours
- Protection: OVP / UVP/ SIP / OCP/ OLP/ OPP/ SCP
- Power: 850W
- Operation Temperature: 0-40C
- Safety: CE / FCC / CB
- Cooling: 140mm Ultra Silent Fan
- Noise: <25dBa
- 80 Plus Certified: Yes - 80 Plus Bronze
- General Specifications:
- Has Mains Plug: No
- Colour: Black
- What's In The Box:
- Power Supply
- Screws
- Manual
- 2 x Cable Ties
- Unit (Product) Dimensions (mm): 150mm x 85mm x 140mm (W x H x D)
- Packaging Dimensions (mm): 300mm x 180mm x 115mm (W x H x D)
- Net Weight (KGs): 1.6 KGs
