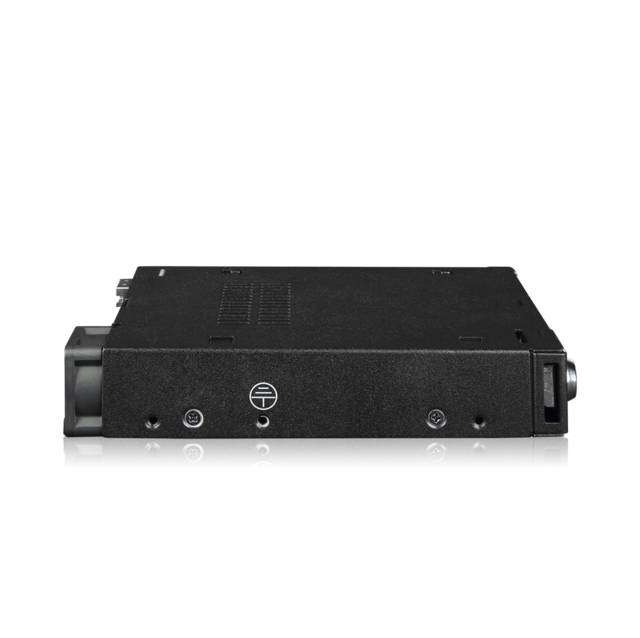

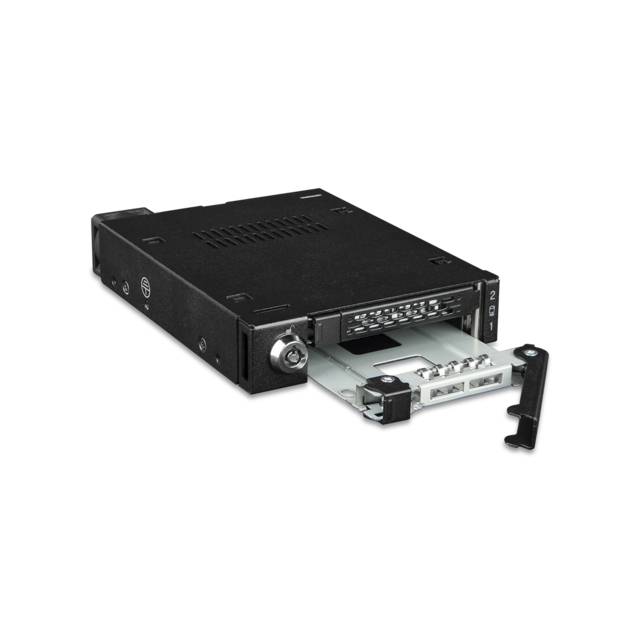

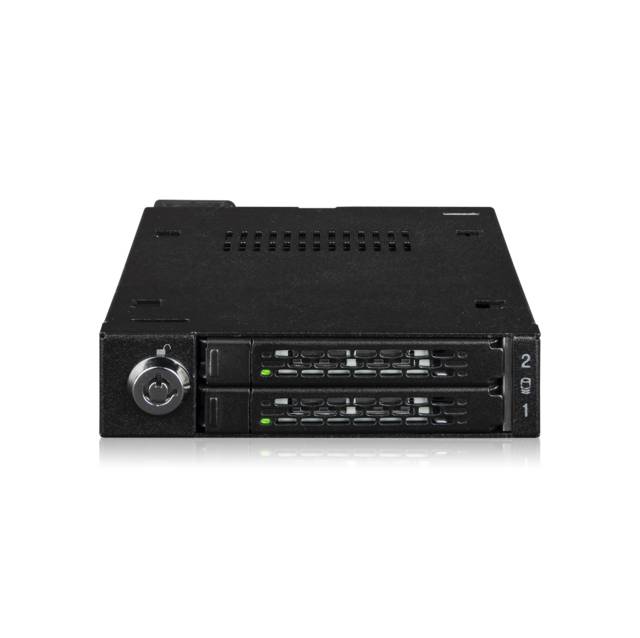

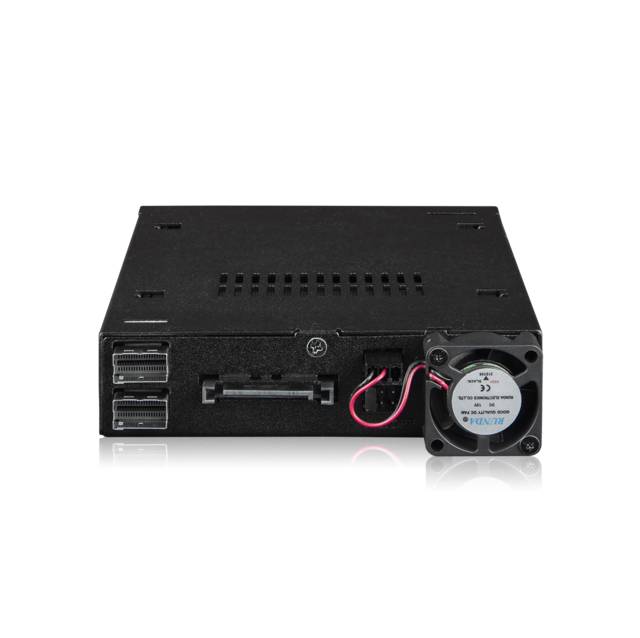

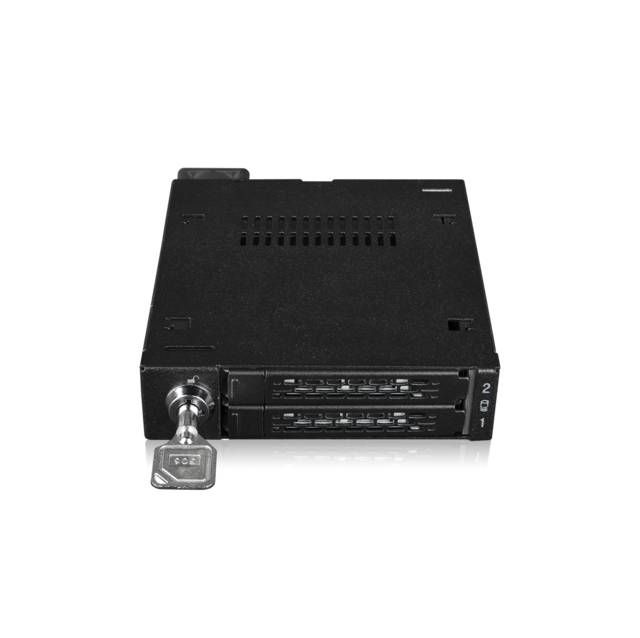

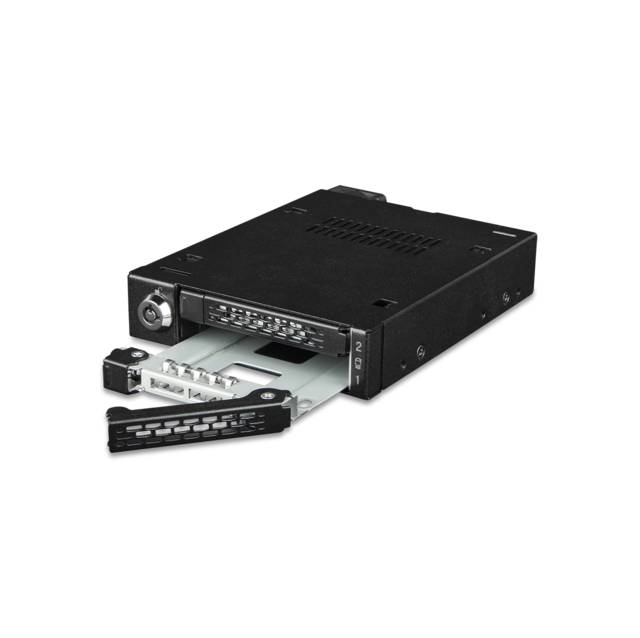

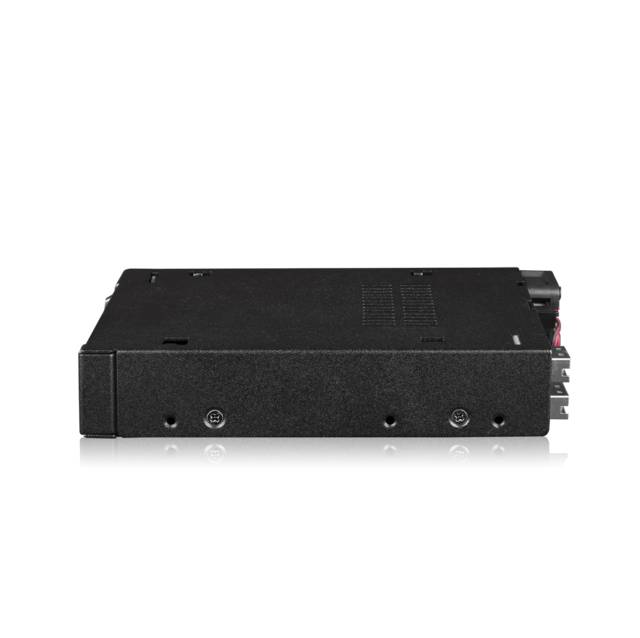

ICYDOCK ToughArmor MB092VK-B 2 Bay 2.5 inch U.2/U.3 NVMe SSD PCIe 4.0 Mobile Rack Enclosure for External 3.5 inch Drive Bay
Share
Email
Facebook
Twitter
Specifications
- Mfr part number: MB092VK-B
- Feature:
- Fits 2x 2.5 inch U.2/U.3 NVMe SSDs from 5-9.5mm height
- Installs into standardized external 3.5 inch device bay (floppy bay)
- Uses 2x Slimline SAS (SFF-8654 4i) connector, pinout defined by SFF-9402 Rev 1.1
- Supports NVMe 4.0 64Gbps transfer rates per drive bay
- Ruggedized full-metal enclosure and drive trays
- 2-segment key lock for additional physical security
- Eagle-hook tray latch securely holds the tray inside the enclosure
- EMI Grounding protects SSDs from electrical damage
- Active Power Technology (APT) saves power by shutting down when no drives are installed
- Industry-leading 5 years limited warranty against all defects
- Complimentary support from a professionally trained US-based technical support agent
- Colors: Black
- Support Drive Size: 2.5 inch (up to 9.5mm height)
- Compatible Drive Type: U.2 or U.3
- Number of Drives: 2
- Drive Bay: 1 x 3.5 inch drive bay
- Host Interface: 2 x SlimSAS SFF-8654 4i, pin-out defined by SFF-9402 Rev 1.1(Tri-mode HBA/RAID card compatible)
- Power Input: 1 x 15pin SATA power connector
- Transfer Rate: Up to 64Gbps (depending on SSD speed)
- Support SSD Capacity: No limitation
- Drive Cooling: 1x25x25x10mm fan
- Structure / Material: Full metal
- Hot Plug: Yes
- Drive Activity LED Indication: Drive power: solid green; Drive access: flashing green
- Package Contents: Device, user manual, screws, keys
- U.2 Connector Insertion Rate: 10,000
- Humidity: 5%~65% RH
- Operating Temperature: 0C to 60C (32F to 140F)
- Storage Temperature: -35C to 70C (-31F to 158F)
- Compliance: CE, RoHS, REACH
- Warranty: 5 years limited warranty
- Product Dimension (L x W x H): 143 x 101.2 x 25.4mm
- Product Net Weight: 415.6 g
- Package Gross Weight: 482 g
- *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country. All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.
