ICY DOCK ToughArmor MB840M2P-B M.2 NVMe SSD to PCIe 3.0 x4 Removable SSD Mobile Rack for PCIe Expansion Slot (Black & Silver)
Share
Email
Facebook
Twitter
Specifications
- Mfr Part Number: MB840M2P-B
- Features:
- Fits 1x M.2 PCIe NVMe SSD with all drive length including 2230 (30mm), 2242 (42mm), 2260 (60mm), 2280 (80mm), and 22110 (110mm)
- Use 1x PCIe 3.0 x4 interface, also supports installation into PCIe 3.0/4.0 x4, x8, and x16 slots
- Install into a single-width full-height/half-height PCIe expansion slot

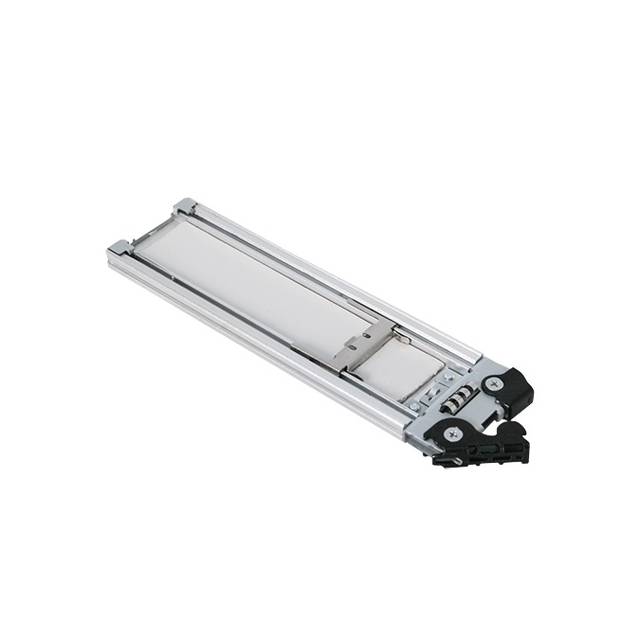

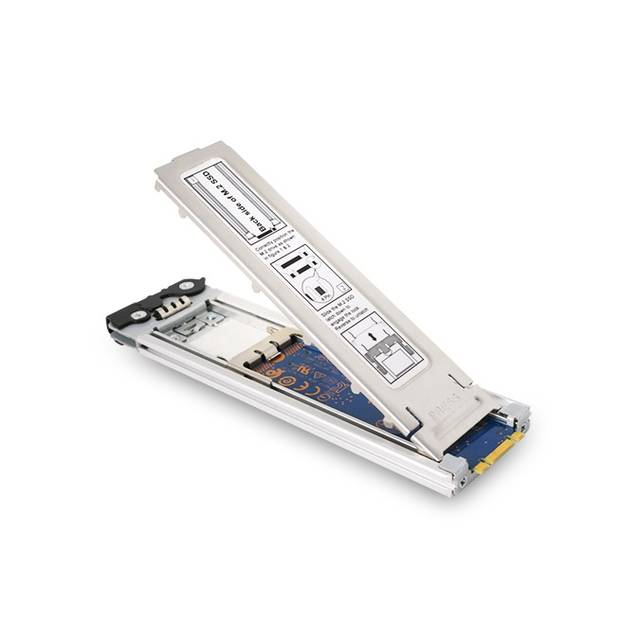

- Removable drive tray with tool-less drive installation design for easy drive maintenance
- Low profile design allows for multiple bays to be installed side-by-side in a modular design
- Eagle-hook lock system keeps the drive secure in the enclosure
- EMI Grounding protects hard drives from electrical damage
- Anti-Vibration Technology (AVT) reduces noise and protects against environmental damage
- Active Power Technology (APT) saves power by shutting the device down when no drive is install
- PCIe interface provides both power and data transfer which ultimately reduce cable clutter
- Built-in thermal pad conducts the heat from the drive to the metal tray
- Optional HDD activity signal output lets you transfer the drive activity signal to computer case
- Industry leading 3-year warranty against all defects
- Complimentary support from professionally trained US-based technical support agents
- Color: Black & Silver
- Support Drive Size: 1x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110)
- Compatible Drive Type: NVMe
- Number of Drives: 1
- Support Drive Length: 30mm110mm
- Drive Bay: 1 x PCIe 3.0 or 4.0 x4 / x8 / x16 expansion slot
- Host Interface: PCIe 3.0 x4
- Power Input: Via PCIe
- Transfer Rate: Up to 32Gbps (Depending on hard drive speed)
- Support HDD Capacity: No Limitation
- Drive Cooling: Metal heat dispersion with passive cooling
- Structure/ Material: Metal with partial ABS plastic
- Drive Activity LED Indication:
- Drive power: solid green
- HDD access: flashing green
- SATA Connector Insertion Rate: 5,000
- Humidity: 5%~65% RH
- Opertating Temperature: 0C to 60C (32F to 140F)
- Storage Temperature: -35C to 70C (-31F to 158F)
- Compliance: CE, RoHS, REACH
- Dimension (WxHxD): 160 x 122 x 22mm
- Product Net Weight: 181.5g
- Package Net Weight: 260g
- Warranty: 3 years
- Package contents: Device, user manual, screw, I/O Faceplate
