Specifications

• Mfr Part Number:TP5-3532B
• Compatible for PS5 and Slim:

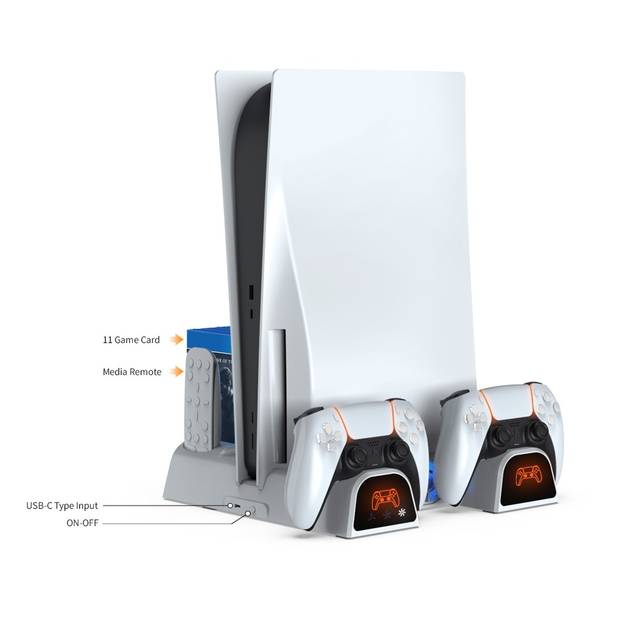

  • TYPE-C input port

  • Fan gear switch: It can turn the fan on and off, and the wind power can be adjusted. Each time the switch is pressed, the working status of the fan can be switched, which are: fast gear -medium gear -slow gear -off (this cycle); after the product is powered on, the fan is in the fast gear working state

  • Cooling fans: The product has 2 high-speed fans, which can speed up the air circulation inside the console to achieve the purpose of heat dissipation

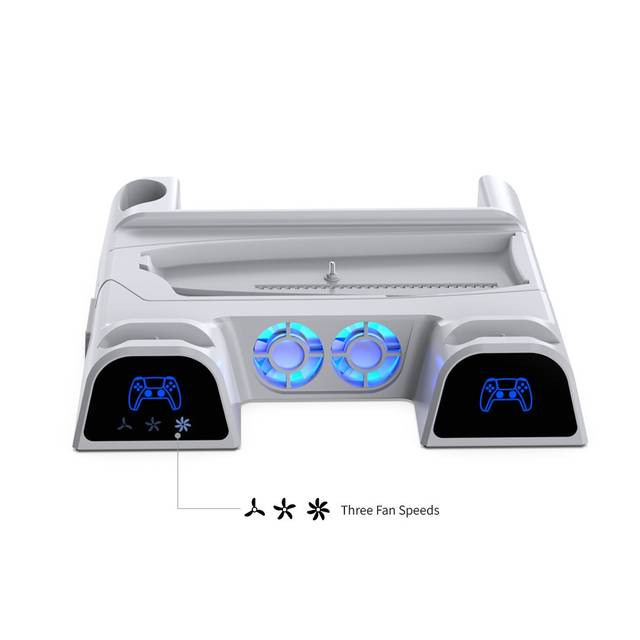

  • Fan gear indicator blue: The indicator lights in the three states of "strong/weak/dark" respectively indicate the "fast/medium/slow" wind speed of the fan, and the indicator light will turn off when it is turned off

  • White light display of the fan gear icon: The white light corresponding to the three icons respectively displays the fan speed of "fast/medium/slow" in three gears, and the icon goes out after it is turned off
  • Charging deck: It can charge two original PS5 controllers at the same time. According to the picture, insert the PS5 controller smoothly into the left (right) charging deck to charge
  • Charging display window: The controller charging display window can display the charging status of the controller:

    • 1.After the product is powered on, the controller icons on the display window of this product are all blue. Insert the controller smoothly into the left (right) controller charging socket for charging, and the corresponding left (right) controller display window will immediately turn to red display; When charging is complete, the display window turns to blue again

    • 2.The PS5 controller is not connected to the console for charging: the charging indicator on the controller is an orange breathing display; when charging is complete, the indicator on the controller is off

    • 3.The PS5 controller is successfully connected to the console for charging: the charging indicator on the controller is solid white. If the controller is being charged in the game, the controller will light blue and white for a long time

    • 4.When the charging power of the PS5 controller reaches about 80% or more, if you unplug the controller and then plug it in to charge, the controller may not be charged due to the battery protection function of the controller; you need to wait for the controller battery to drop below 80%. The battery will continue to charge

  • Technical Parameter:

    • Input voltage: DC 5V

    • Input current: 3A

    • controller charging voltage: DC 5.1V

    • controller charging current: 1000mA*2

    • Fan speed: 4500+/-10% rpm

    • Charging time: It takes about 3 hours for the controller to be fully charged

    • Product size: 283*270*60mm (length*width*height)

    • Product material: ABS

    • Note: For the above parameters, our company reserves the right to change the design or specifications without prior notice.
  • Product acessories:

    • TYPE-C dedicated charging cable

    • PS5 console fixing screw 1PCS
• Country Of Orgin: China
• Product Size (L*W*H)(Inch):10.3*2.1*11.3
• Product Weight (lbs): 2.3
• Individual Package Length (Inch):10.7
• Individual Package Width (Inch):2.4
• Individual Package Height (Inch):11.6
• Individual Package Weight (lbs): 2.4
• Package Content:
  • 1*Cooling Base

  • 1*brackets

  • 1*cable
• If battery included in /with the product? Yes or NO.: No
• Warranty: One year
