Specifications

• Mfr Part Number: ARCHON 2 MESH RGB (WHITE)
• Case Type: Mid Tower
• M/B Type: Mini ITX/ Micro ATX/ ATX

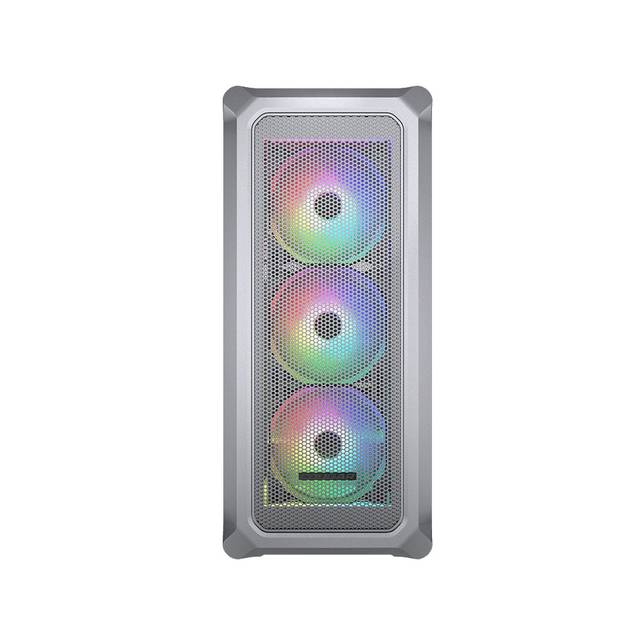

• Front Panel: Mesh

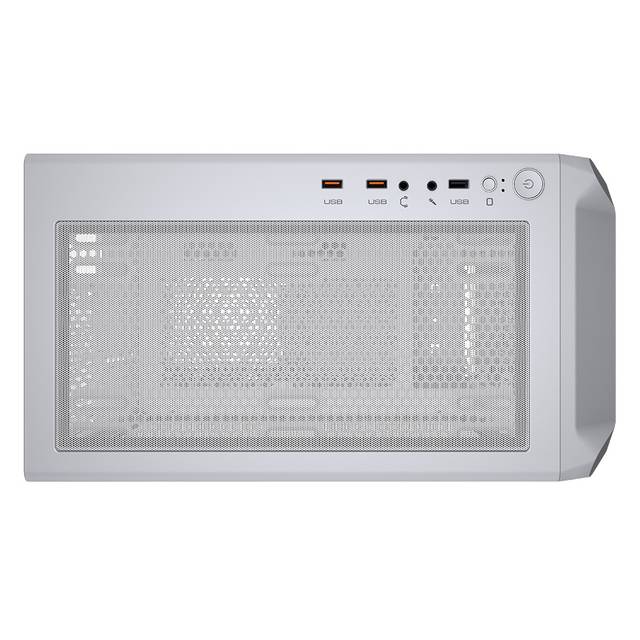

• I/O Panel: USB 3.0 x 2, USB 2.0 x 1, Mic x 1 / Audio x 1, RGB Button
• Drive Bays:
  • 3.5" Drive Bay: 2
  • 2.5" Drive Bay: 2+1 (converted from 3.5" drive bay) / (2 SSD trays included)
• Expansion Slots: 7
• Cooling Fan Support:
  • Front: 120mm x 3 / 140mm x 2 (120mm ARGB fan x 3 pre-installed)
  • Top: 120mm x 2 / 140mm x 2
  • Rear: 120mm x 1
• Maximun Number of Fans: 6 Max.
• Water Cooling Support:
  • Front: 360mm / 280mm / 240mm / 140mm / 120mm
  • Top: 240mm / 120mm
  • Rear: 120mm

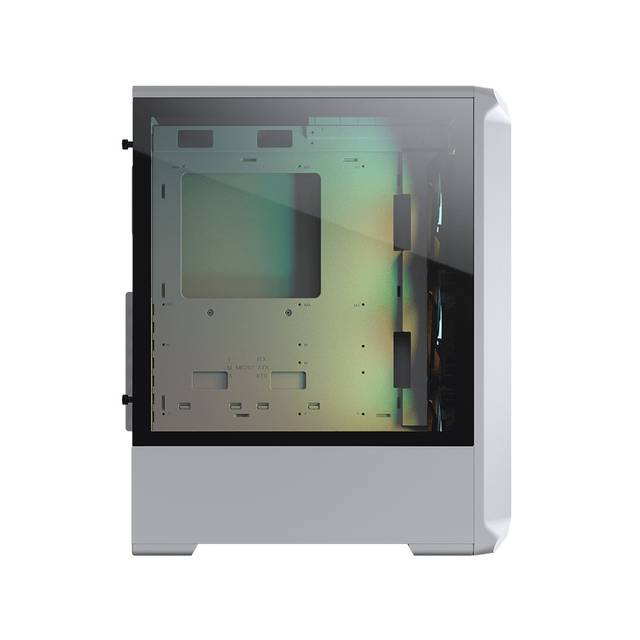

• Transparent Left Panel: 3mm Tempered Glass
• RGB Sync with M/B: Yes
• Maximum Compatibility:
  • Max. Graphics Card Length: 315 (mm) / 12.4 (in)
  • Max. CPU Cooler Height: 170 (mm) / 6.7 (in)
  • Max. PSU Length: 160 (mm) / 6.3 (in)
• Note: When install a 360mm radiator at the front, the maximum PSU length is 140mm.
• Dimensions (WxHxD): 210 x 470 x 380 (mm)/ 8.3 x 18.5 x 15 (in)
• Net Weight: 5 (kg)
• Product Package Dimension (LxHxW) (in): 20.5 x17.4 x 10.5
• Individual Package Weight (lbs): 13
