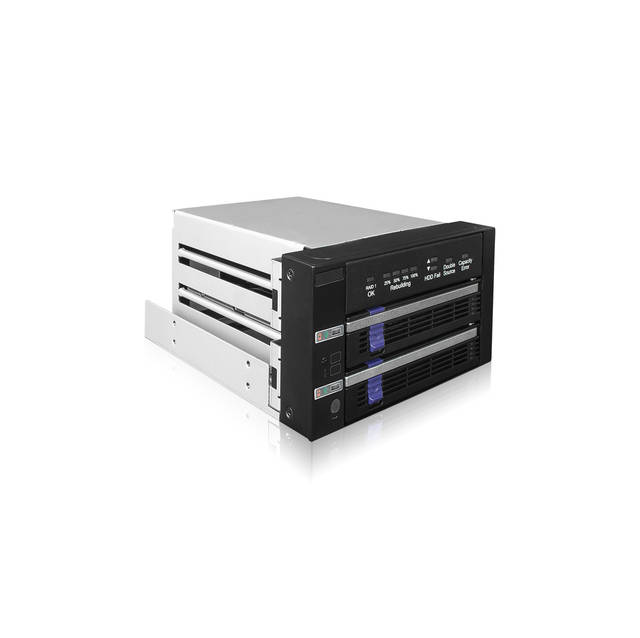

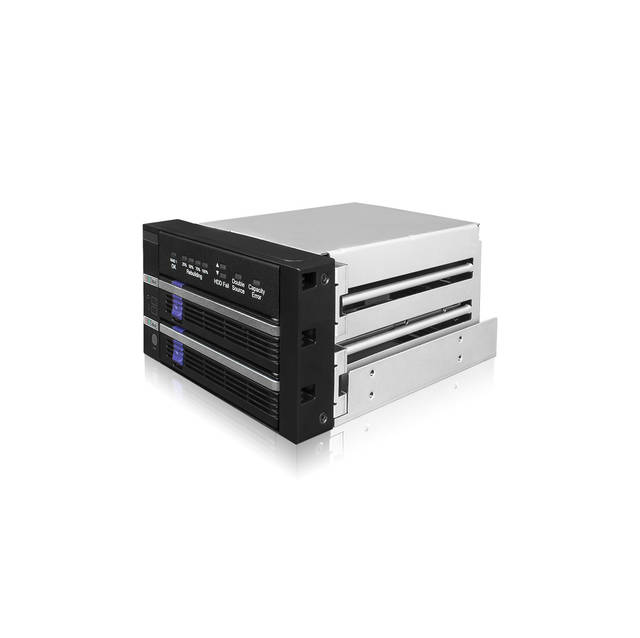

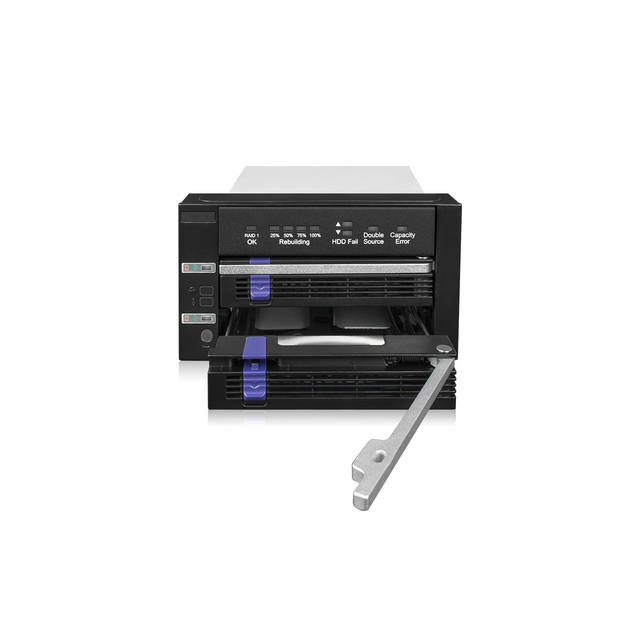

ICYDOCK FatCage RAID MB901SPR-B R1 Dual 2.5 inch/3.5 inch SATA Drive Removable RAID 1 and JBOD Mobile Rack Enclosure in 2 x 5.25 inch Bay
Share
Email
Facebook
Twitter
Specifications
- Mfr Part Number: MB901SPR-B R1
- Features:
- Supports 2 x 2.5 inch SSD/HDD or 3.5 inch SATA hard drive
- Supports RAID 1 and JBOD modes
- Installs into any standard external 2 x 5.25 inch optical drive bay
- Supports up to 6 Gbps data transfer speed
- Built-In JMS562 hardware RAID chipset
- Easy-to-read RAID status LED indicators for drive power, access, fail and RAID 1 rebuilding process
- Supports SATA and 15-pin power cable with locking latch design
- Anti-Vibration Technology (AVT) reduces noise and protects against environmental damage
- Active Power Technology (APT) saves power by shutting the device down when no drive is installed
- Industry-leading 3-year warranty against all defects
- Complimentary support from professionally trained US-based technical support agents
- Color: Black + sliver
- Support Drive Size: 2 x 2.5 inch/3.5 inch SSD/HDD
- Compatible Drive Type: SATA
- Number of Drives: 2
- Max Drive Height:
- 2.5 inch HDD/SSD up to 15mm height
- 3.5 inch HDD up to 26.1mm height
- Drive Bay: 1 x external 5.25 inch device bay
- Host Interface: 1 x SATA 7pin
- Power Input: 2 x 15pin SATA power connector
- Transfer Rate: Up to 64Gbps (depending on hard drive speed)
- Support SSD Capacity: No limitation
- Drive Cooling: Metal heat dispersion
- Support Hot-Swap: Yes
- RAID Function: RAID 1(SAFE) / JBOD
- Controller IC: JMicron JMS562
- Structure / Material: Metal with partial plastic ABS
- Supported Operating System: Windows 11, 10, 8.1, 8, 7 and vista

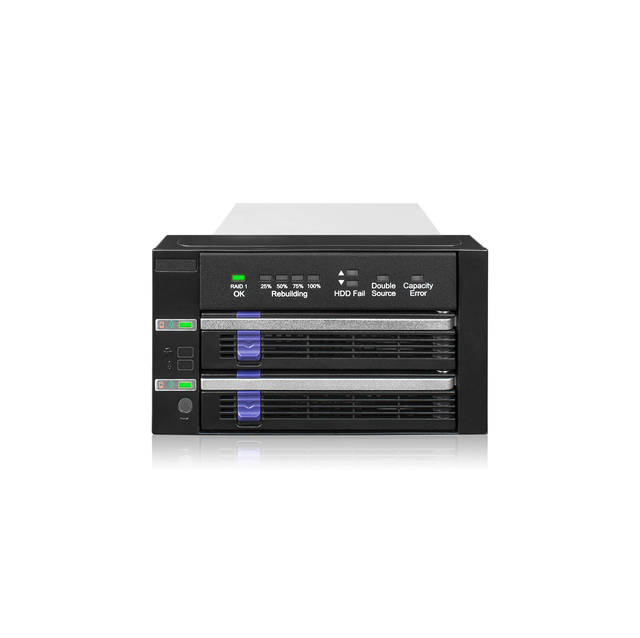

- RAID 1 Status LED Indicator: RAID 1 configuration is normal: solid green degraded RAID 1: LED off
- Rebuilding Progress LED Indicator: Divide the progress into four stages: Flashing green
- HDD Fail LED Indicator:
- HDD fail: solid red in corresponded device slot
- Double source: solid red in both device slots
- Capacity error: solid red in the device slot which has smaller capacity drive
- Double Source LED Indicator: Double source: solid red
- Capacity Error LED Indicator: Capacity error: solid red
- Drive Activity LED Indication:
- Empty bay: LED off
- Drive power: solid green
- HDD fail: solid red
- HDD access: flashing green
- Package Contents: Device, user manual, screws
- SATA Connector Insertion Rate: 10,000
- Humidity: 5%~65% RH
- Operating Temperature: 0C to 60C (32F to 140F)
- Storage Temperature: -35C to 70C (-31F to 158F)
- Compliance: CE, RoHS, REACH
- Dimension (L x W x H): 146.4 x 85.8 x 185.6 mm
- Product Net Weight: 1,064.2g
- Package Gross Weight: 1,359.5g
- Warranty: 3 years
